Elastomer Material Data &
Engineering Selection Hub

Comprehensive polymer reference library for automotive, aerospace, and industrial OEMs. Access chemical compatibility matrices, ASTM D2000 line callout decoders, Shore A durometer hardness scales, and in-house compounding parameters across NBR, FKM, EPDM, Silicone, and PTFE.

ASTM D2000 & SAE J200 -200°C to +300°C Operating Window 50+ Industrial Fluids & Fuel Resistance PPAP Level 3 & MTC 3.1 Certified
Interactive ASTM Decoder Chemical Compatibility Matrix

Materials Compass

Direct Jump to Engineering Sections
ASTM D2000 Line Callout Decoder Interactive automotive drawing specification breakdown
Shore A Durometer Hardness Slider Tactile hardness scale & sealing deflection curves
Fluid Compatibility Matrix Searchable screening across oils, fuels, coolants & steam
Official Brochure Datasheet (Page 7) Inspect authentic 4K scanned factory publication
Automotive Drawing Specification

Interactive ASTM D2000 Line Callout Decoder

Automotive and mechanical drawings define elastomeric parts using standardized ASTM D2000 line callouts. Click any typical application preset below to instantly decode the exact metric units, polymer type, hardness durometer, tensile strength, and suffix test criteria.

Application Presets:
Active ASTM D2000 Callout Code:
M Units
2 Grade
BG Polymer
7 Hardness
14 Tensile
B14 Suffix 1
EA14 Suffix 2
EF11 Suffix 3
EO14 Suffix 4
Measurement System

Prefix M: SI Metric Units

Specifies that tensile strength is expressed in MegaPascals (MPa), temperatures in Celsius (°C), and dimensions in millimeters. Omission of 'M' indicates Imperial units (PSI, °F).

Base Polymer Chemistry

Type & Class: BG (Nitrile NBR)

Type B: Heat resistance up to 100°C continuous.
Class G: Maximum volume swell ≤ 40% in ASTM No. 3 Oil. Unambiguously identifies a medium-high ACN Nitrile elastomer.

Physical Properties

714: 70A Durometer • 14 MPa

7: 70 ± 5 Shore A durometer hardness.
14: Minimum ultimate tensile strength of 14 MPa (approx. 2,030 PSI) with minimum 250% elongation at break.

Specific Test Suffixes

Suffix Requirements

B14: Compression set max 25% (22h @ 100°C).
EA14: Water immersion volume change ±5%.
EF11: Fuel immersion swell resistance.
EO14: ASTM No. 1 Oil immersion testing.

Hardness Reference Scale

Shore A Durometer Scale & Tactile Comparison

Durometer measures the indentation resistance of rubber materials. Drag the interactive slider or tap a benchmark to evaluate tactile feel, deflection behavior, and recommended sealing pressures.

70 Shore A Durometer
30A Ultra Soft Foam Gasket, Gel, Earplug
50A Soft Rubber Band, Pencil Eraser
70A Standard Sealing AS568 O-Ring, Tire Tread
80A Firm / Rigid Shoe Heel, Hydraulic Wiper
90A Hard / Solid Skateboard Wheel, Polyurethane
70 Shore A: The Global Industry Standard for Fluid & Gas Sealing Provides optimal balance between conformability to machine finishes and extrusion resistance up to 1,500 PSI (100 bar) with standard clearance gaps.
15% – 25% Recommended Squeeze
Up to 1,500 PSI Working Pressure
Chemical Resistance Guide

Elastomer Chemical & Environmental Screening Matrix

Filter by material family or search for specific aggressive media including motor oils, automatic transmission fluids (ATF), hydraulic brake fluids, steam, and outdoor weathering.

Elastomer Compound Temp Range (°C) Motor Oils & Fuel Brake Fluid (DOT 3/4) Water & Steam Ozone & Weather Compression Set Action
NBR (Nitrile / Buna-N) Acrylonitrile Butadiene -35°C to +120°C Excellent Poor (Do Not Use) Good (<80°C) Fair Excellent (<25%) Request RFQ
FKM (Viton™ Fluorocarbon) Fluoroelastomer Copolymer / Terpolymer -20°C to +230°C Outstanding Poor (Glycol Bases) Good (Low Pressure) Outstanding Excellent Request RFQ
EPDM (Ethylene Propylene) Terpolymer with Diene Monomer -45°C to +150°C Do Not Use (Swelling) Outstanding Outstanding (>140°C) Outstanding (UV/O3) Good Request RFQ
Silicone (VMQ / LSR) Vinyl Methyl Polysiloxane -60°C to +250°C Fair (Mineral Oils Only) Fair Good (Non-Steam) Outstanding Good Request RFQ
HNBR (Hydrogenated Nitrile) Saturated Nitrile for High Dynamic Stress -40°C to +165°C Outstanding Fair Excellent Excellent Outstanding Request RFQ
Chloroprene (Neoprene / CR) Polychloroprene Elastomer -35°C to +110°C Good Poor Good Good Good Request RFQ
PTFE (Virgin / Carbon-Filled) Polytetrafluoroethylene Fluoropolymer -200°C to +260°C Universal Inert Universal Inert Universal Inert Universal Inert Fair (Cold Flow) Request RFQ
Published Factory Catalog

Bhushan Rubber Brochure Material Reference

Faithfully transcribed from Page 7 of the official Bhushan Rubber Industries catalog. Highlights published continuous vs. peak intermittent temperature ratings across core polymer families.

Material Family Short Code Hardness Range Max Continuous Max Intermittent Low Temp Limit
Natural Rubber NR 30–95 75 °C 105 °C −40 °C
Ethylene Propylene EPDM 20–85 130 °C 150 °C −40 °C
Fluorocarbon FPM / FKM 50–95 205 °C 260 °C −40 °C
Chloroprene CR 30–90 95 °C 125 °C −40 °C
Nitrile NBR 40–100 100 °C 130 °C −40 °C
Silicone SI / VMQ 20–80 205 °C 300 °C −40 °C
Engineering Notice: Intermittent limits represent short-duration thermal excursions and are not ratings for continuous immersion. Confirm specific ASTM D2000 line callouts for production release.

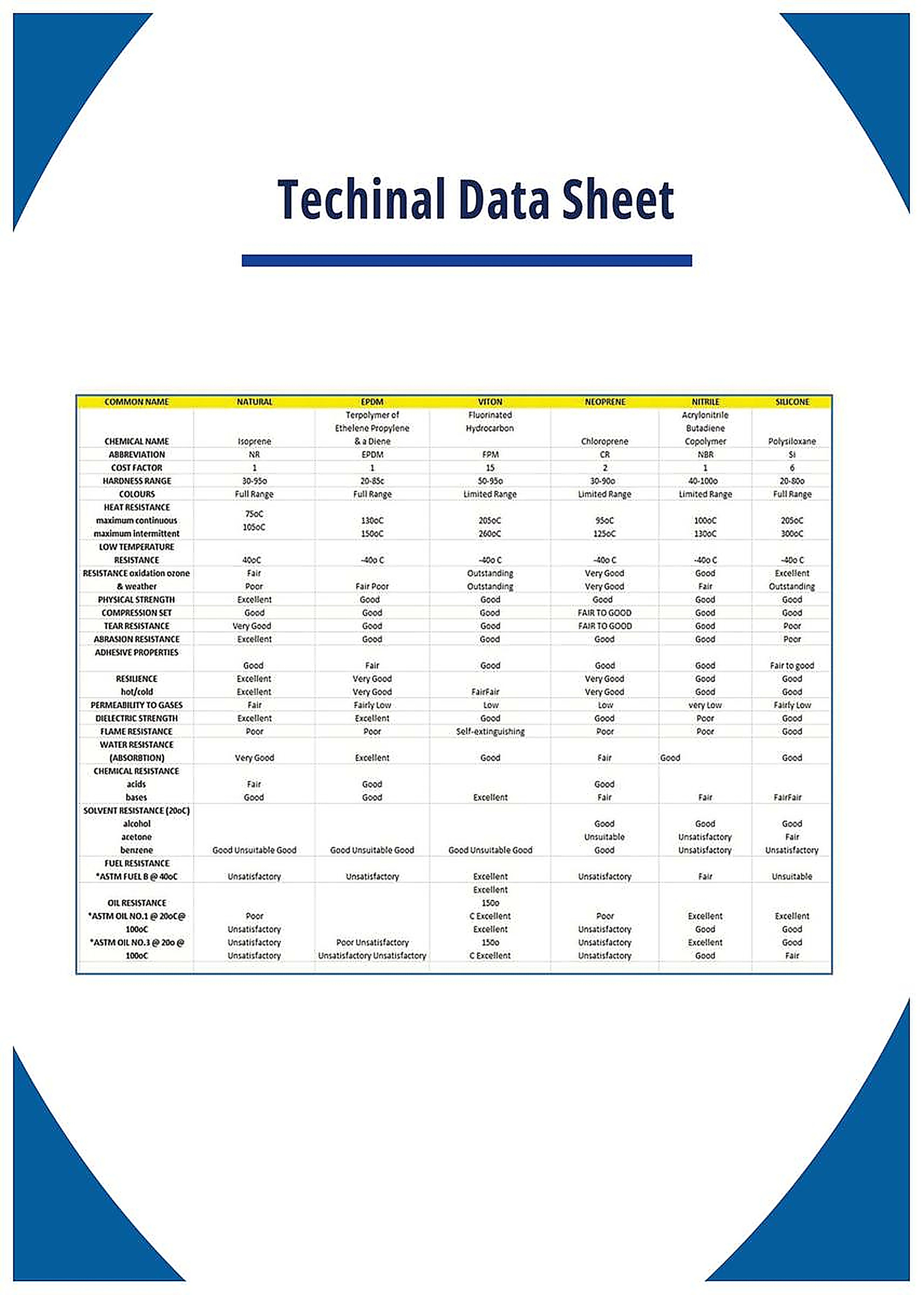

Bhushan Rubber Industries Technical Datasheet Page 7 Official Scan
Click to View Full 4K Datasheet
Original 4K Factory Publication (3840 × 5383 px)
Application Data Checklist

What Material Engineers Need to Specify a Compound

A polymer name alone is never sufficient for precision manufacturing. Provide these four operational parameters so our laboratory can formulate the optimal compound formulation and mold tooling.

01

Media & Fluid Exposure

Specify every contacting fluid, fuel, lubricant, cleaning solvent, or refrigerant gas — including concentration percentages, additives, and whether immersion is continuous or intermittent.

02

Thermal Operating Profile

Define continuous normal operating temperature, cold-start ambient minimums, peak thermal spikes, duration at extremes, and expected thermal cycling frequency.

03

Mechanical Duty & Pressure

Detail static clamping force or dynamic motion (reciprocating/rotary), surface finish Ra, working pressure or vacuum, vibration frequency, and maximum allowable compression set.

04

Standards & Validation

State required ASTM D2000, SAE J200, DIN ISO 3601, or OEM internal specifications, PPAP Level (1–3), FAIR dimensional inspection, and material test certificates (MTC 3.1).

In-House Testing & Compound Qualification Lab

Every custom formulation is verified in our Gurugram testing lab using computerized Moving Die Rheometers (MDR), Universal Tensile Testers (UTM), cryogenic embrittlement baths, and optical video metrology.
