Translucent Silicone Sheets
High-translucency solid silicone rubber sheeting manufactured from ultra-pure virgin silicone gum. Offers optical clarity, outstanding tear resistance, and zero pigment leaching, making it ideal for solar photovoltaic laminating and medical devices.
Types & Configurations of Translucent Silicone Sheets
Solar Panel Laminating Bladders
Heavy 3.0mm to 5.0mm thick high-tear translucent sheets used in vacuum lamination presses.
Medical Diagnostic Gasket Sheets
High-purity translucent sheets for fluidic diagnostic cassettes and laboratory seals.
Architectural Structural Glazing Pads
Discrete transparent elastomeric pads isolating glass balustrades from metal clamps.
Optical Sensor Environmental Gaskets
Clear silicone gaskets permitting infrared and visible light sensor transmission.
Soft 30A Shore A Vacuum Forming Bladders
Ultra-compliant transparent silicone membranes for composite carbon-fiber autoclave debulking.
Key Industrial Applications
Specifications & Technical Details
Translucent Silicone Sheets can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.
Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Optical Clarity | High translucency (allows visual inspection of fluid flow and components) |
| Thickness Range | 0.3mm to 12.0mm (up to 5.0mm for solar laminator bladders) |
| Tear Strength (Die B) | 25 kN/m to 40 kN/m (vastly superior to peroxide cured silicone) |
| Tensile Strength | 8.0 MPa to 11.5 MPa (ASTM D412) |
| Elongation at Break | 450% to 650% |
| Biocompatibility | Certified USP Class VI and ISO 10993 non-cytotoxic |
| Operating Temp | -60°C to +200°C |
Material Selection & Properties
We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| General Purpose Silicone | Thermal stability from -60°C to +200°C, dielectric | Electrical insulation, high-temp oven door seals |
| Platinum-Cured Silicone | Ultra-pure, non-yellowing, zero peroxide byproducts | Medical fluid transfer, pharmaceutical filling lines |
| High-Temperature Grade | Continuous operation up to +250°C, intermittent +300°C | Automotive turbocharger hoses, furnace baffles |
| Flame Retardant (UL94 V-0) | Low smoke toxicity, self-extinguishing flame resistance | Rail transit interior seals, EV battery pack insulation |
| Conductive / Antistatic Silicone | Volume resistivity 10² to 10⁴ Ω·cm for ESD shielding | Avionics EMI/RFI shielding, semiconductor handling |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on Translucent Silicone Sheets.

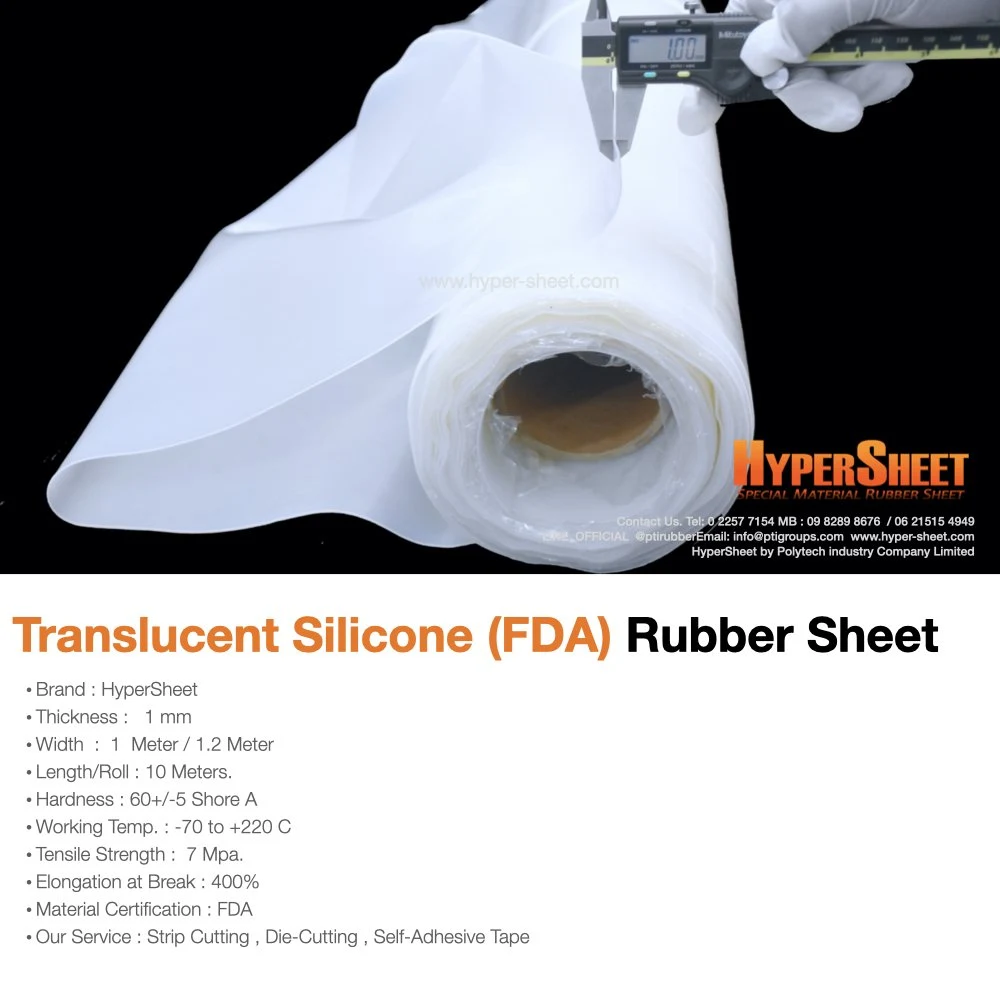

Production Batch Gallery
Actual production batch examples of Translucent Silicone Sheets manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
