Silicone Profiles
Precision extruded silicone rubber profiles engineered for commercial baking ovens, industrial autoclaves, LED luminaires, and solar equipment. Retains supreme flexibility and recovery across extreme thermal swings from -60°C to +250°C.
Types & Configurations of Silicone Profiles
Tadpole & Flanged Oven Door Seals
Tadpole-shaped silicone profiles with fabric core or mounting tail for high-temperature oven doors.
E-Type & P-Type Compression Gaskets
Engineered bulb profiles providing soft, resilient closing action on autoclave hatches.
Inflatable Pneumatic Silicone Seals
Hollow elastomeric profiles inflated by air pressure to hermetically seal cleanroom doors.
LED Lighting Waterproof Edge Seals
Translucent optical silicone channel profiles sealing outdoor architectural luminaires.
Co-Extruded Conductive Silicone Profiles
Nickel-graphite filled silicone profiles providing combined environmental and EMI shielding.
Key Industrial Applications
Specifications & Technical Details
Silicone Profiles can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.

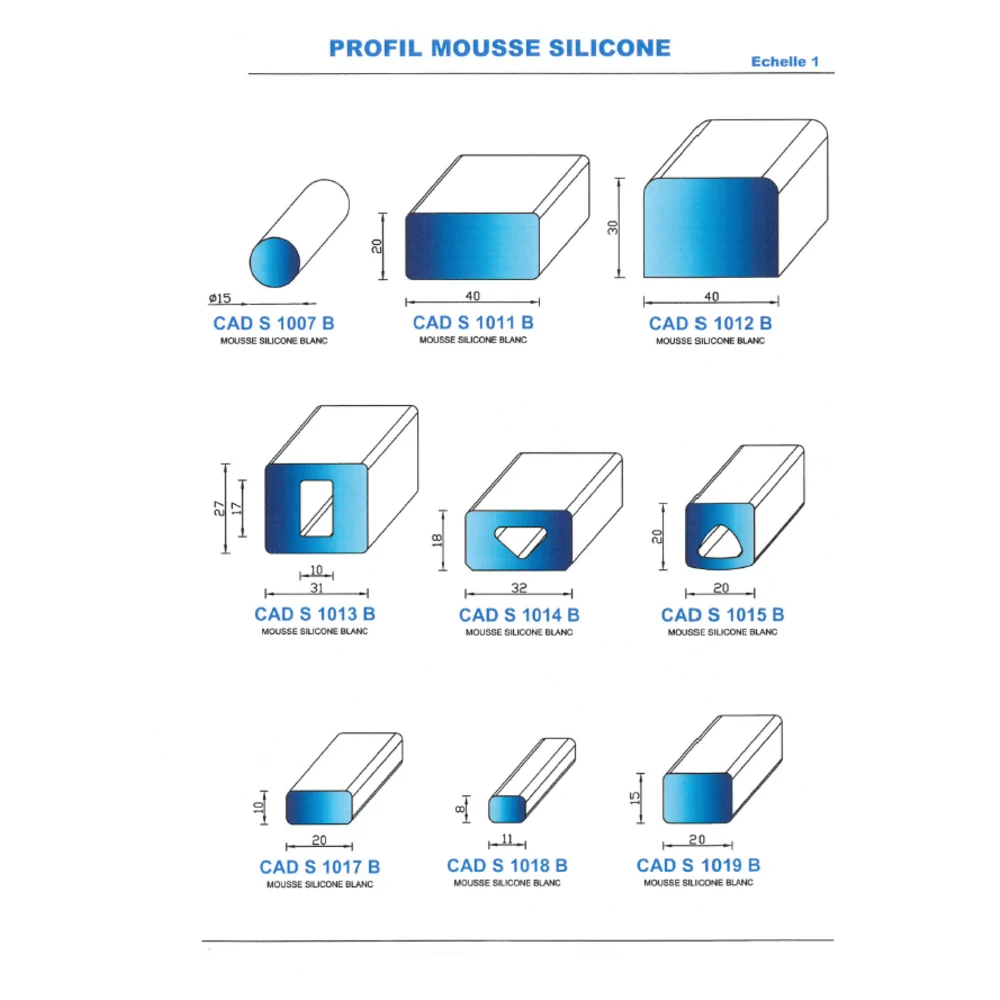

Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Profile Geometry | E, P, D, Tadpole, U-Channel, Lip-bulb, or custom CAD cross-sections |
| Cross-Section Size | 1.5mm up to 120mm profile width |
| Durometer Hardness | Solid: 30A to 80A Shore A; Sponge: 0.35 to 0.70 g/cm³ density |
| Color Availability | Translucent, Red-Iron Oxide, White, Black, Blue, Gray, or custom RAL matching |
| Corner Jointing | Precision hot vulcanized molded 90° and 45° corners for endless rectangular frames |
| Certifications | FDA 21 CFR 177.2600, BFR XV, UL 94 V-0 flame-retardant grades available |
| Operating Temp | -60°C to +250°C continuous (+300°C intermittent) |
Material Selection & Properties
We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| General Purpose Silicone | Thermal stability from -60°C to +200°C, dielectric | Electrical insulation, high-temp oven door seals |
| Platinum-Cured Silicone | Ultra-pure, non-yellowing, zero peroxide byproducts | Medical fluid transfer, pharmaceutical filling lines |
| High-Temperature Grade | Continuous operation up to +250°C, intermittent +300°C | Automotive turbocharger hoses, furnace baffles |
| Flame Retardant (UL94 V-0) | Low smoke toxicity, self-extinguishing flame resistance | Rail transit interior seals, EV battery pack insulation |
| Conductive / Antistatic Silicone | Volume resistivity 10² to 10⁴ Ω·cm for ESD shielding | Avionics EMI/RFI shielding, semiconductor handling |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on Silicone Profiles.

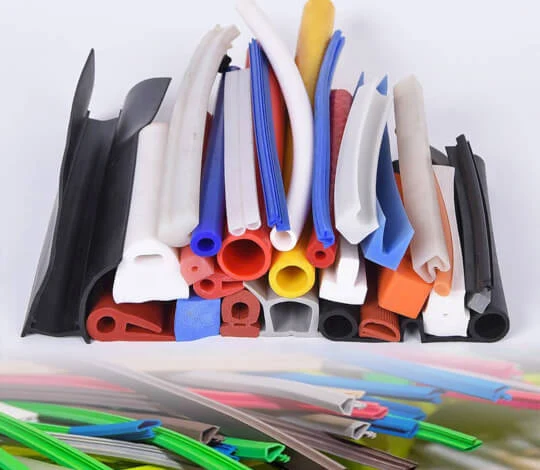

Production Batch Gallery
Actual production batch examples of Silicone Profiles manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
