Plastic Housings
High-performance injection moulded plastic enclosures, electronics housings, and sensor shells engineered to shield sensitive PCBs, microcontrollers, and wireless transmitters from water ingress, mechanical impacts, and chemical corrosion.
Types & Configurations of Plastic Housings
IP67 Outdoor Telemetry Enclosures
Polycarbonate enclosures with integrated tongue-and-groove silicone gasket channel.
Snap-Together Sensor Transducer Shells
Compact ultrasonic welding or snap-lock ABS cases for automotive radar and proximity sensors.
DIN-Rail Modular Controller Housings
Flame-retardant polyamide enclosures designed for snap-on mounting on standard 35mm DIN rails.
Explosion-Proof Flamepath Housings
Heavy thick-walled glass-reinforced polyester (GRP/SMC) junction boxes for hazardous areas.
Handheld Diagnostic Instrument Cases
Ergonomic ABS enclosures with soft-grip overmolded TPE side bumpers and battery compartments.
Key Industrial Applications
Specifications & Technical Details
Plastic Housings can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.

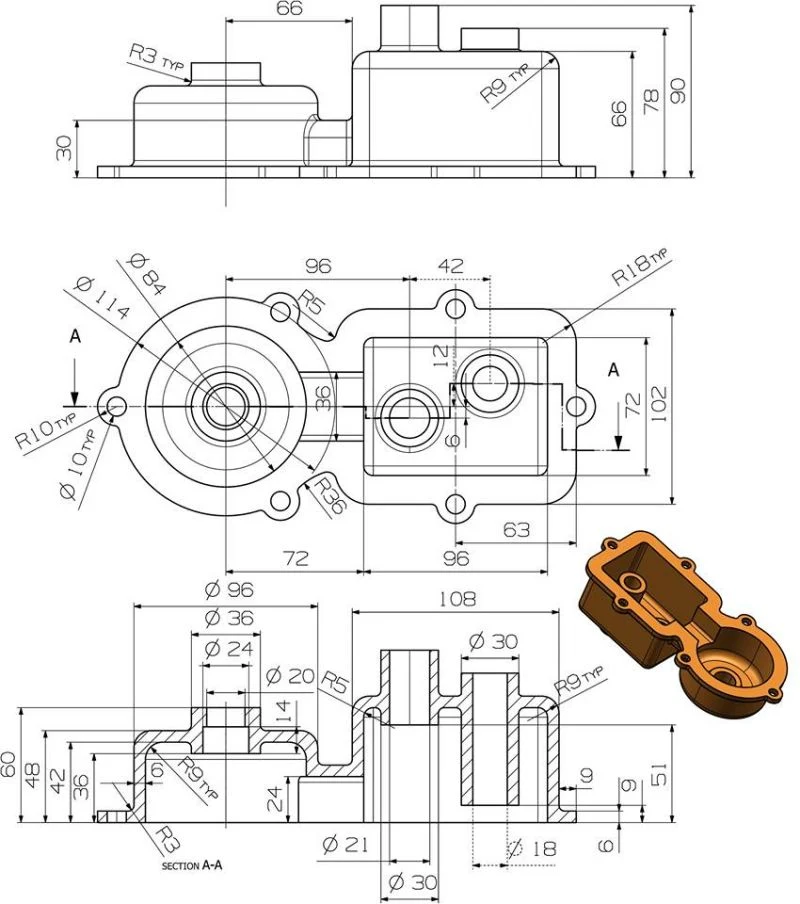

Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Ingress Protection | IP65, IP66, IP67 per IEC 60529 (with continuous silicone gasket) |
| Mechanical Impact | IK08 to IK10 per EN 62262 (withstands 5 Joule hammer drop test) |
| Polymer Formulations | UV-stabilized Polycarbonate (PC), ABS, Glass-filled Nylon, Polyester GRP |
| Flammability Standard | UL 94 V-0 self-extinguishing within 10 seconds without flaming drips |
| Hardware | Captive M4/M5 stainless steel lid screws threaded into molded-in brass inserts |
| Wireless Performance | 100% RF transparent for Wi-Fi, LoRaWAN, Zigbee, GPS, and 5G signals |
| Operating Temp | -40°C to +120°C |

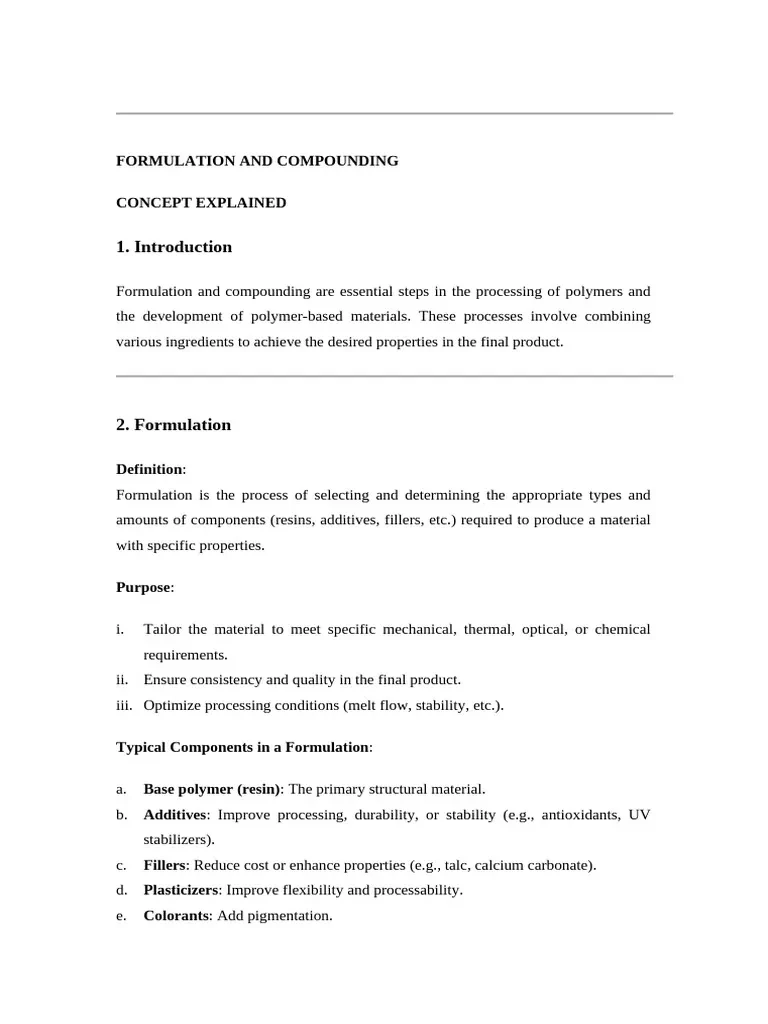

Material Selection & Properties
We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| Nylon 6 / 66 (Polyamide) | High tensile strength, toughness, good sliding properties | Gears, wear pads, wire rope pulleys, bushings |
| POM (Acetal / Delrin) | High dimensional stability, zero moisture absorption | Precision gears, valve seats, fuel sender parts |
| UHMW-PE (Ultra-High Molecular) | Extremely low coefficient of friction (0.10), zero wear | Conveyor wear strips, chute liners, chain guides |
| HDPE / Polypropylene | Chemical resistance to acids & alkalis, food contact | Chemical tank flanges, pipe fittings, plating barrels |
| Polycarbonate (PC) | Optically clear, high impact strength (unbreakable) | Machine safety guards, instrument sight glasses |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on Plastic Housings.

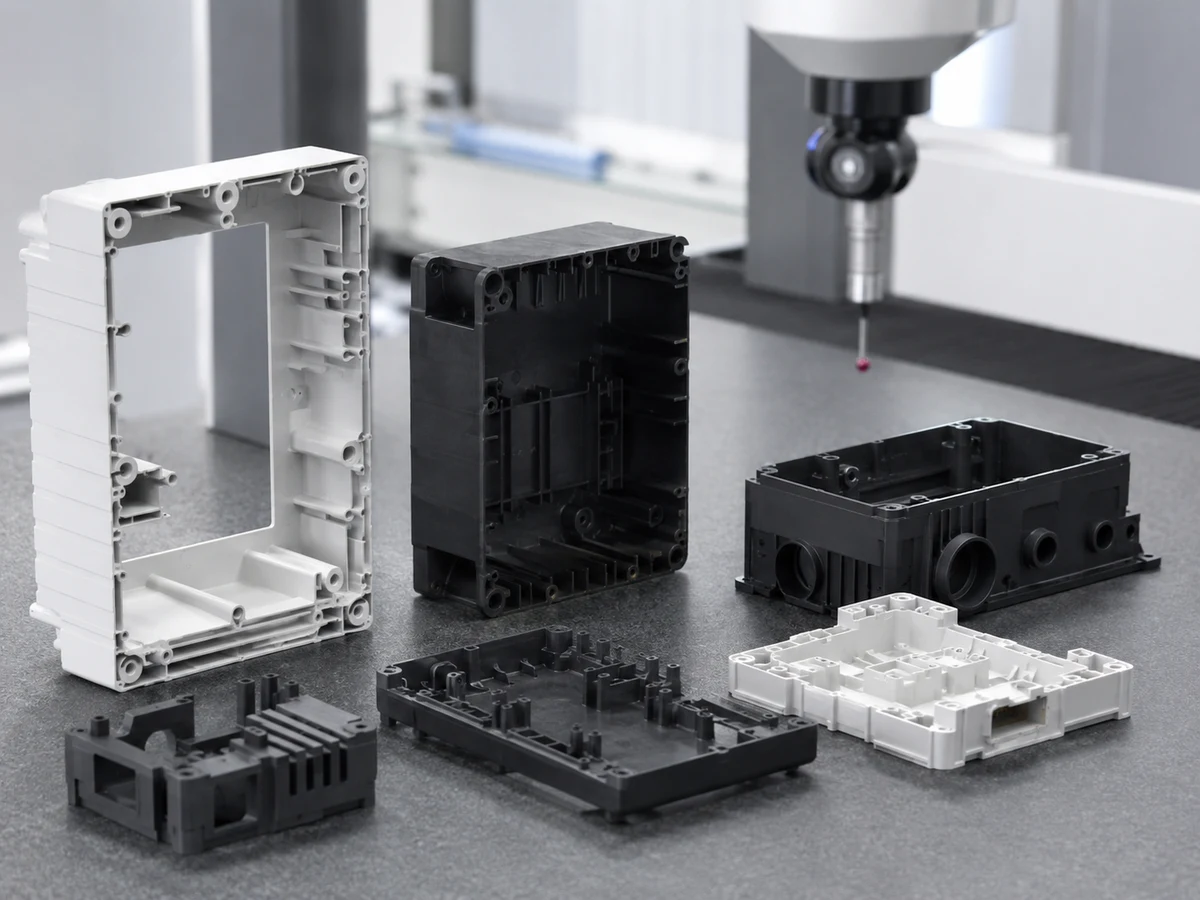

Production Batch Gallery
Actual production batch examples of Plastic Housings manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
