Plastic Fittings
Precision injection moulded plastic hose barbs, threaded pipe nipples, elbows, and quick-connect fluid couplers. Moulded in FDA compliant Polypropylene, chemical-grade PVDF, and tough Nylon for chemical handling, beverage dispensing, and medical tubing lines.
Types & Configurations of Plastic Fittings
Multi-Tier Hose Barb Connectors
Engineered sharp barb geometry providing high burst grip on flexible silicone and PVC tubing.
Moulded NPT & BSP Threaded Adaptors
Hex nipples, reducing bushings, and female sockets with clean flash-free precision threads.
Push-In Pneumatic Tube Fittings
Acetal bodied fittings with internal stainless gripper teeth and NBR O-ring sealing.
Sanitary Tri-Clamp Plastic Ferrules
Moulded PVDF and PP sanitary ferrules for single-use pharmaceutical bioprocess lines.
Y & T Fluid Manifold Splitters
Smooth internal bore flow dividers minimizing pressure drop in coolant and washing circuits.
Key Industrial Applications
Specifications & Technical Details
Plastic Fittings can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.

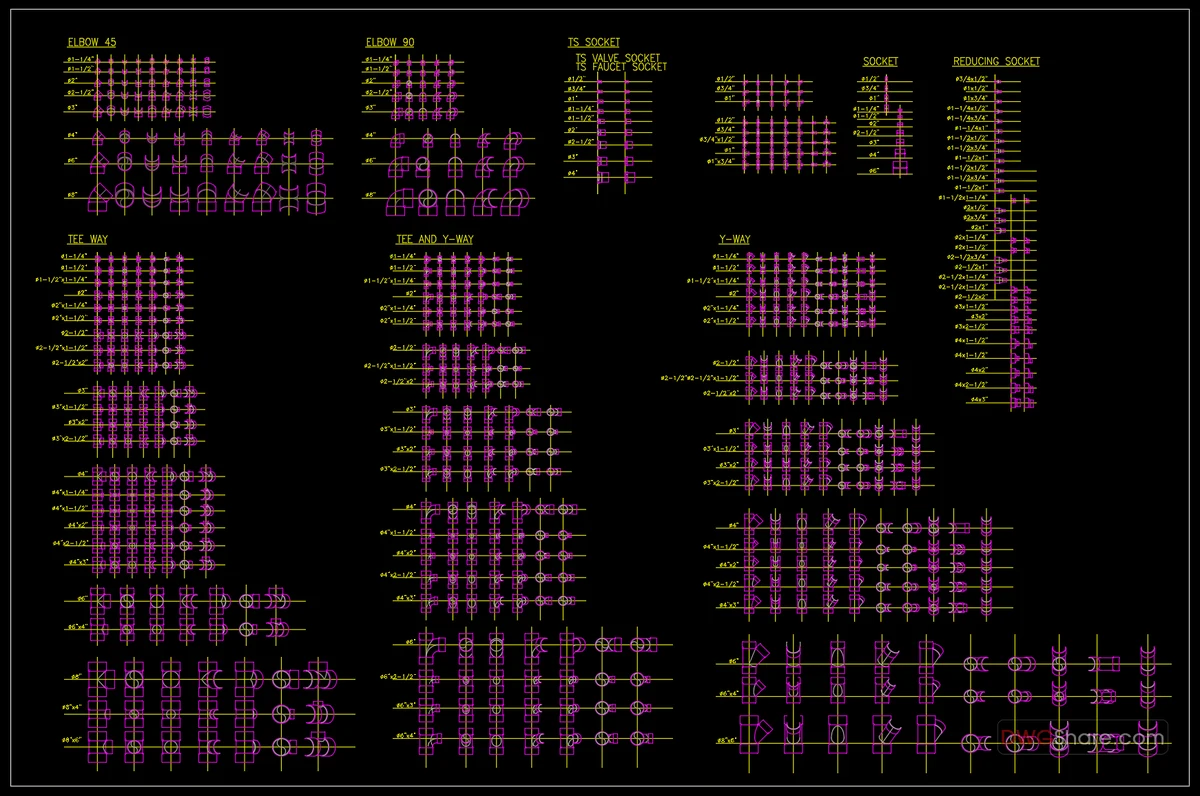

Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Pressure Rating | Up to 16 bar (230 PSI) dependent on tubing and clamp type |
| Thread Accuracy | Meets ISO 7-1 (BSP) and ANSI/ASME B1.20.1 (NPT) standards |
| Materials | Virgin Polypropylene (PP), Nylon 66, PVDF (Kynar®), Polyacetal (POM) |
| Sanitary Compliance | Meets FDA 21 CFR 177.1520, NSF/ANSI 51, and USP Class VI biosafe |
| Internal Bore Finish | Mirror EDM core pins ensure ultra-smooth bore Ra < 0.4 µm (no bacterial hold-up) |
| Burst Pressure | > 3x rated working pressure at room temperature |
| Operating Temp | -20°C to +135°C (PVDF) |
Material Selection & Properties

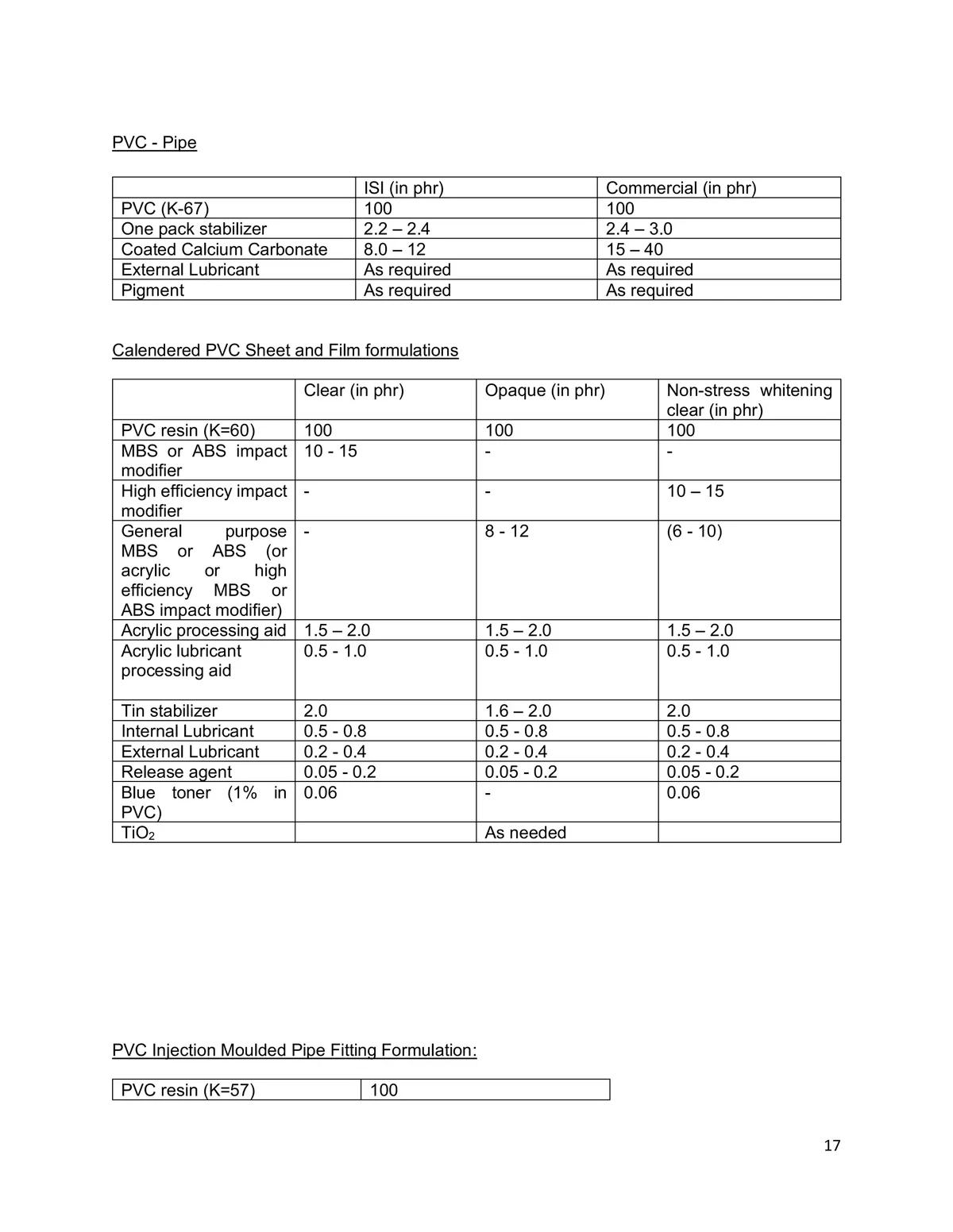

We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| Nylon 6 / 66 (Polyamide) | High tensile strength, toughness, good sliding properties | Gears, wear pads, wire rope pulleys, bushings |
| POM (Acetal / Delrin) | High dimensional stability, zero moisture absorption | Precision gears, valve seats, fuel sender parts |
| UHMW-PE (Ultra-High Molecular) | Extremely low coefficient of friction (0.10), zero wear | Conveyor wear strips, chute liners, chain guides |
| HDPE / Polypropylene | Chemical resistance to acids & alkalis, food contact | Chemical tank flanges, pipe fittings, plating barrels |
| Polycarbonate (PC) | Optically clear, high impact strength (unbreakable) | Machine safety guards, instrument sight glasses |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on Plastic Fittings.
Production Batch Gallery

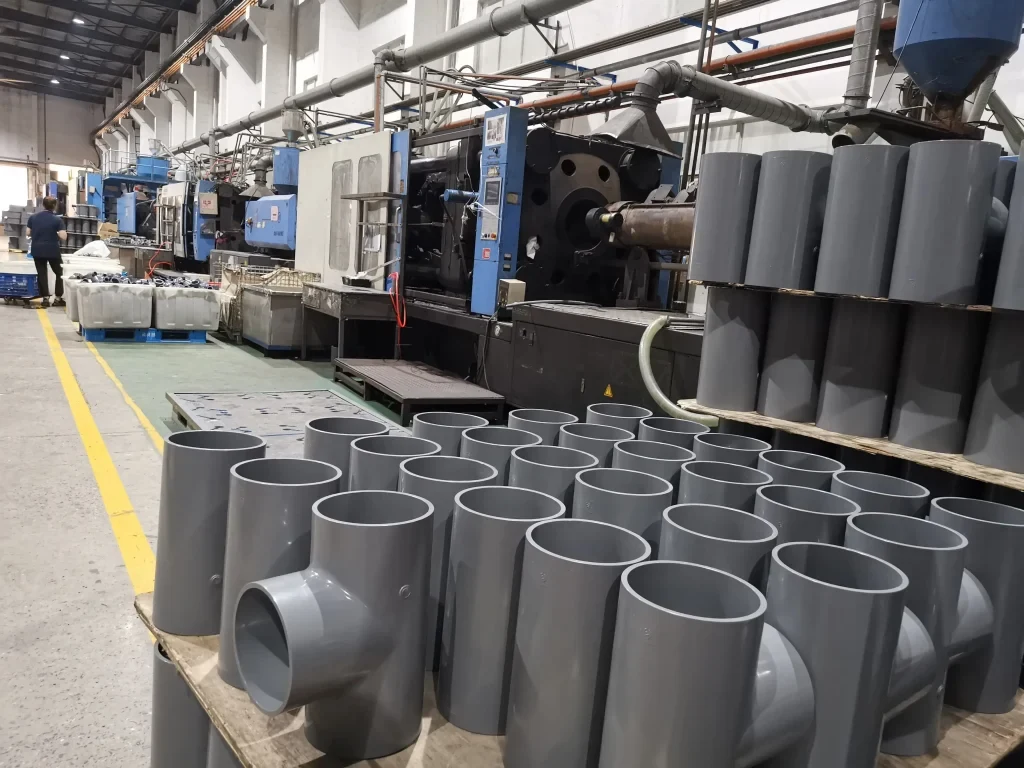

Actual production batch examples of Plastic Fittings manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
