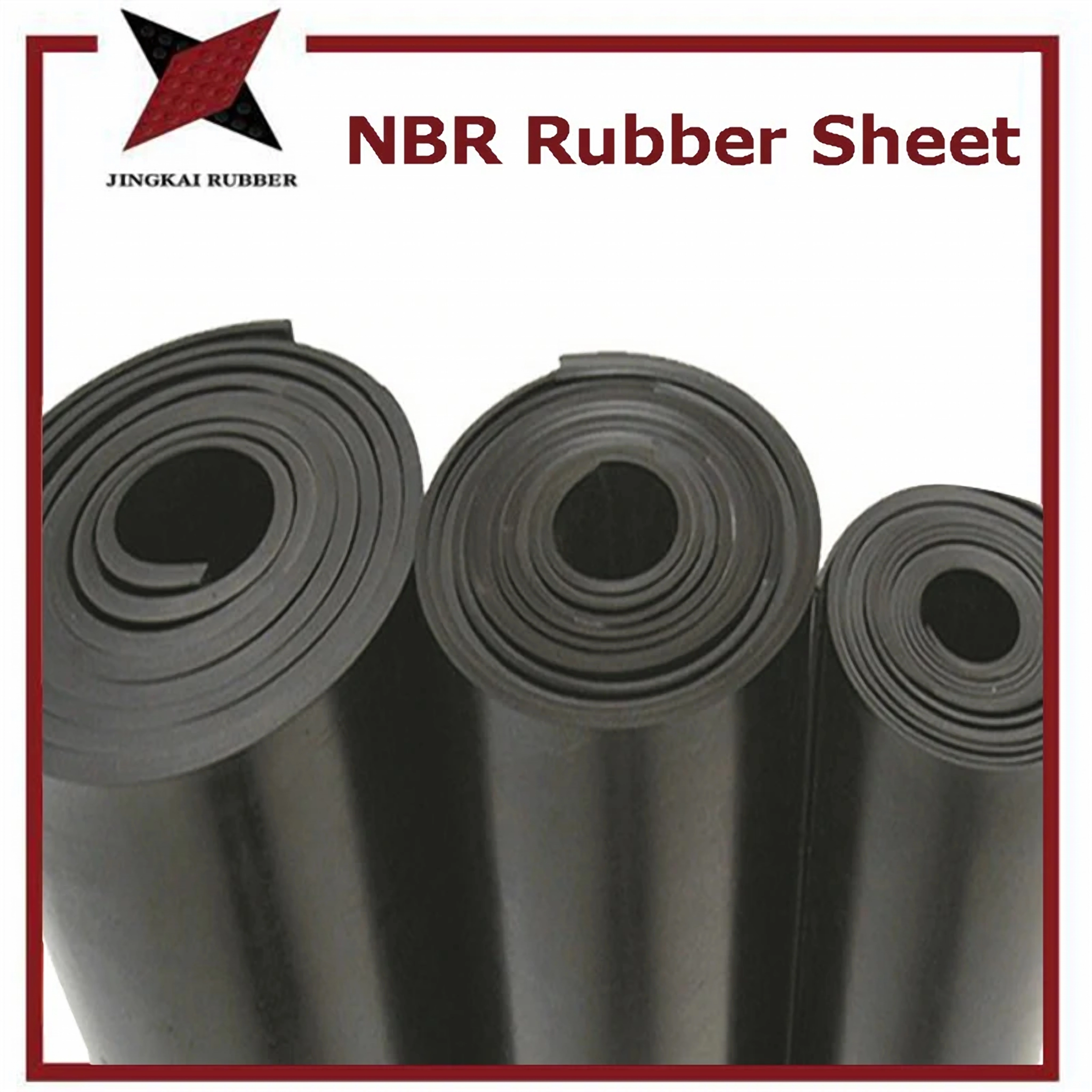

NBR Rubber Sheets
Industrial Nitrile Butadiene Rubber (NBR) sheeting engineered for supreme resistance to mineral oils, greases, diesel fuel, gasoline, and hydraulic fluids. Delivers low volume swell, high tensile strength, and minimal compression set under clamping bolts.
Types & Configurations of NBR Rubber Sheets
Standard 65 Shore A NBR Sheets
All-purpose oil resistant sheet for automotive oil pan and engine gaskets.
High-Acrylonitrile (High-ACN) Sheets
Maximum resistance to aggressive aromatic fuels, gasoline, and solvents.
Cotton / Nylon Fabric Reinforced NBR
Inserted woven fabric preventing bolt hole creep and extrusion under flange torque.
Transformer Oil Grade NBR Sheets
Specially vulcanized low-compression-set NBR for electrical transformer flanges.
Food-Grade White NBR Sheeting
FDA compliant non-toxic white nitrile sheets for edible vegetable oil processing.
Key Industrial Applications
Specifications & Technical Details
NBR Rubber Sheets can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.

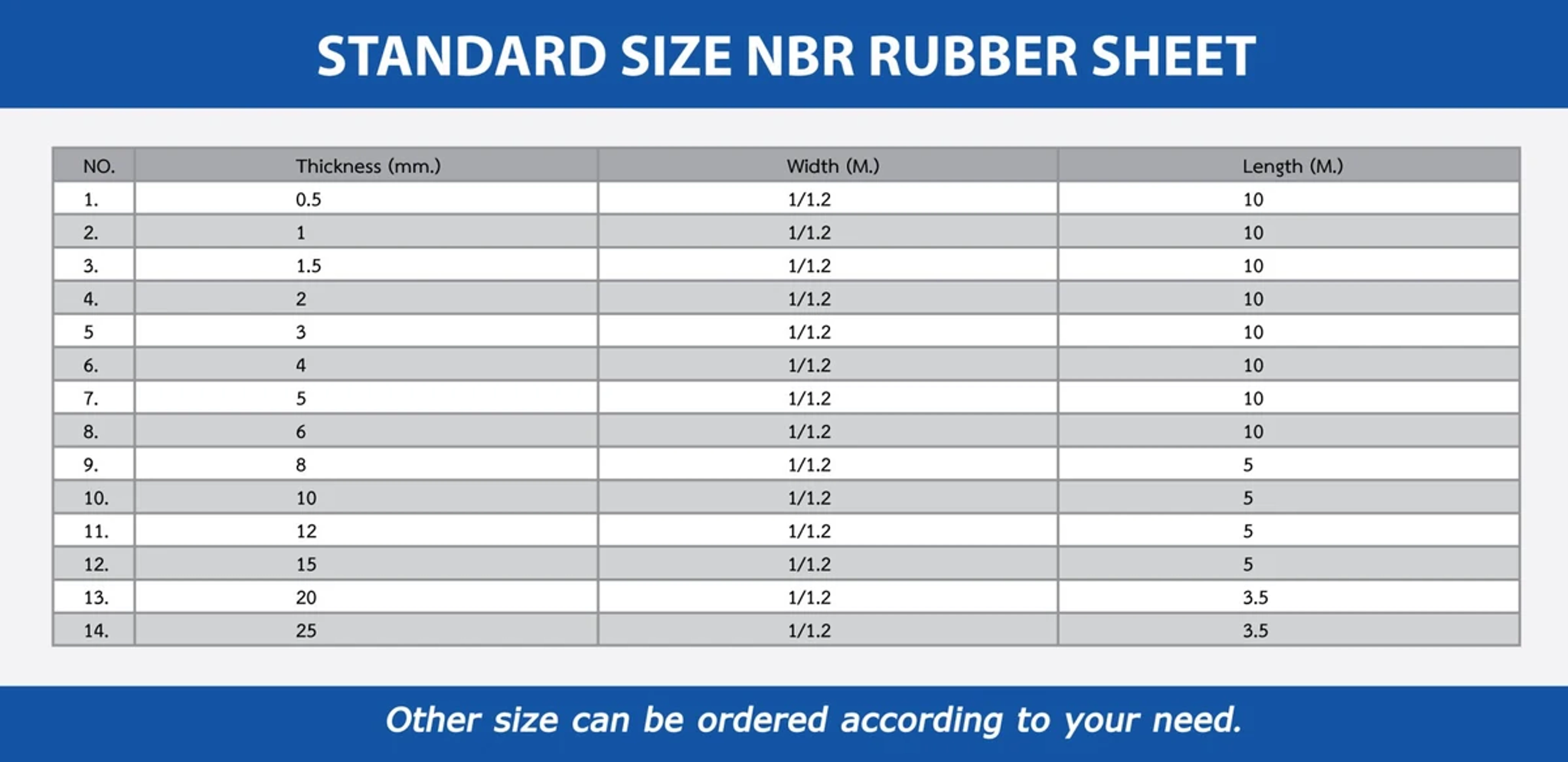

Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Thickness Range | 0.5mm to 30.0mm precision thickness tolerance |
| Roll Widths | 1000mm, 1200mm, 1500mm standard widths |
| Durometer Hardness | 50A, 60A, 65A, 70A, 80A Shore A |
| Volume Swell in Oil | < 5% volume change after 70 hrs at 100°C in ASTM Oil No. 1 |
| Tensile Strength | 7.0 MPa to 15.0 MPa (ASTM D412) |
| Compression Set | < 25% after 22 hrs at 100°C (ASTM D395 Method B) |
| Operating Temp | -30°C to +110°C continuous |
Material Selection & Properties
We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| Natural Rubber (NR) | High tensile strength (>15 MPa), abrasion resistance | Chute lining, shot-blast curtains, conveyor skirting |
| Nitrile (NBR) Sheet | Resistant to mineral oils, kerosene & hydraulic oils | Transformer gaskets, oil-resistant bench mats |
| Neoprene (CR) Sheet | Flame retardant, weather, sea-water & ozone resistant | Marine hatch seals, expansion joint packing |
| EPDM Rubber Sheet | Weather, UV, polar solvent & high temperature stability | Solar roofing membranes, chemical flange gaskets |
| FKM / Viton® Sheet | Withstands concentrated acids, fuels, solvents up to +220°C | Petrochemical flange seals, aerospace battery isolation |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on NBR Rubber Sheets.

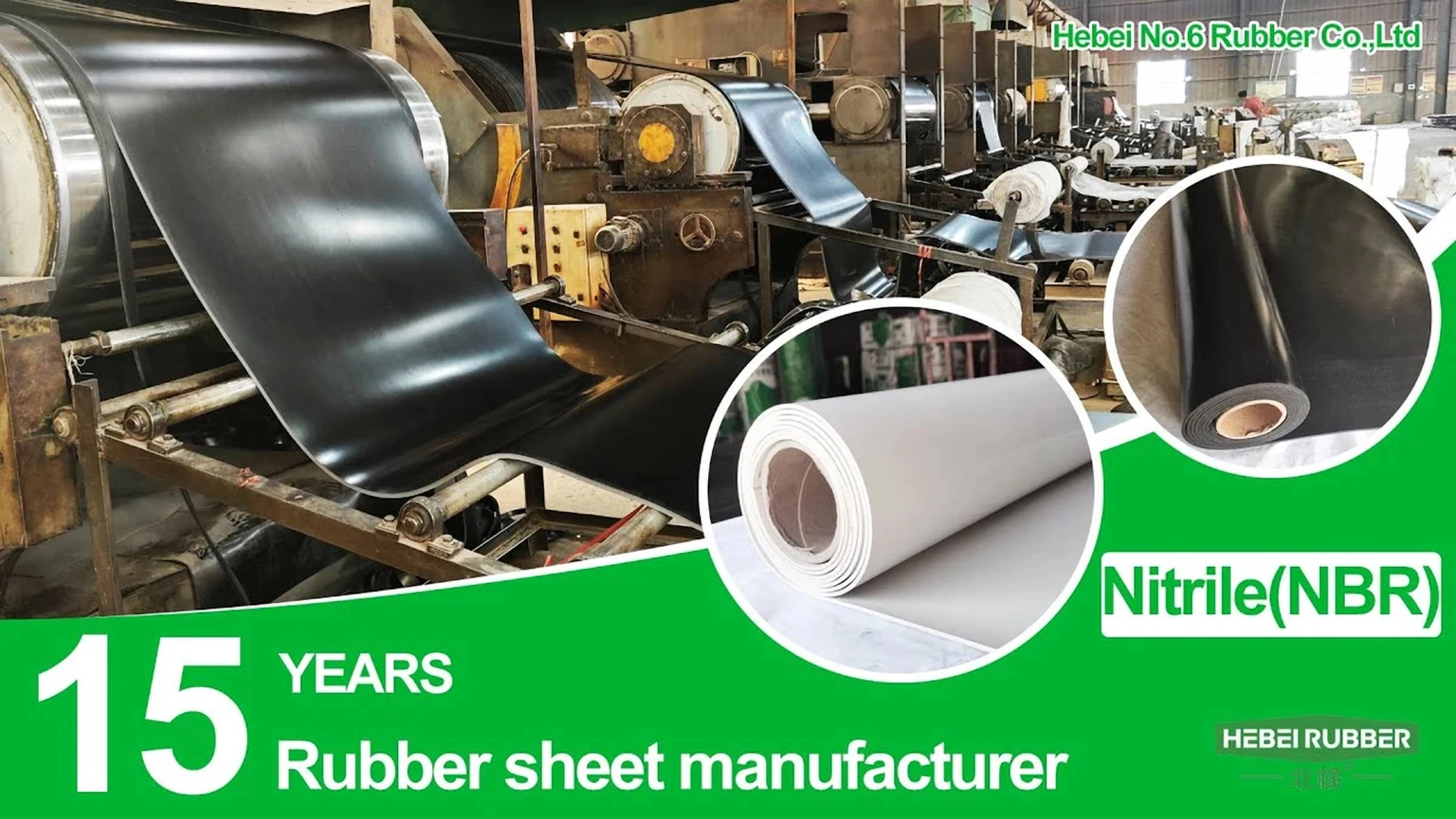

Production Batch Gallery
Actual production batch examples of NBR Rubber Sheets manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
