Door & Window Profiles
High-performance architectural and automotive door and window rubber profiles engineered to block drafts, driving rain, acoustic noise, and extreme thermal transfer. Extruded with precision retaining feet that snap-lock securely into aluminum, PVC, and steel mullion channels.
Types & Configurations of Door & Window Profiles
Acoustic Perimeter Door Seals
Tear-resistant hollow bulb seals providing soft closure feel and high acoustic STC rating.
Glazing Wedge Gaskets
Tapered push-fit EPDM wedge gaskets securing double-glazed insulated glass units.
Sliding Door Brush-Backing Profiles
Extruded elastomer base channel designed to retain polypropylene brush filaments.
Curtain Wall Structural Profiles
Heavy-duty weather barrier gaskets accommodating structural wind load deflection.
Automotive Door Primary & Secondary Seals
Co-extruded sponge bulb with solid base and internal metal clip retention.
Key Industrial Applications
Specifications & Technical Details
Door & Window Profiles can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.
Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Weathering Standard | Passes ASTM C864 architectural specification for EPDM gaskets |
| Compression Set | < 20% after 22 hrs @ 70°C (retains elasticity for decades) |
| Hardness | Solid base: 70A Shore A; Sealing bulb: 45A Shore A or 0.55 g/cm³ sponge |
| Insertion Force | Low friction slip coating allows effortless channel push-fit |
| Air Infiltration | Class 4 airtightness per EN 12207 |
| Water Tightness | Class 9A per EN 12208 (up to 600 Pa driving rain) |
| Operating Temp | -45°C to +125°C |

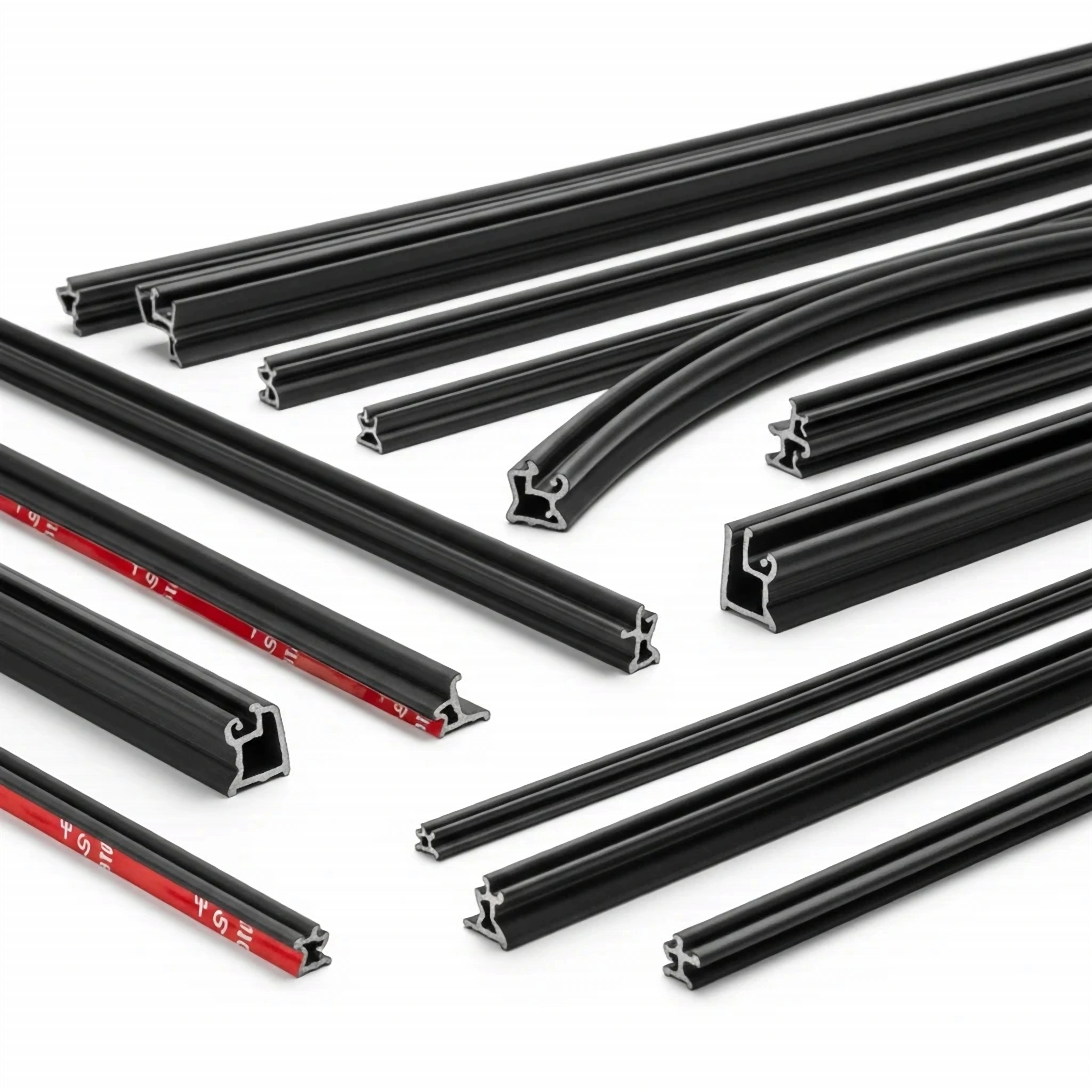

Material Selection & Properties
We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| EPDM Dense Rubber | Extreme weather, ozone & UV radiation resistance | Automotive door/window seals, building facade gaskets |
| EPDM Sponge / Foam | Low closure force, closed-cell water & dust sealing | Enclosure door perimeter gaskets, electrical cabinet seals |
| Nitrile (NBR) Extrusion | Resists mineral oils, hydraulic fluids & greases | Machinery inspection hatch seals, oil sump gaskets |
| Neoprene (CR) Rubber | Self-extinguishing, marine atmospheric stability | Ship portlights, railway carriage door profiles |
| Natural Rubber (NR) | High tear strength, abrasion resistance & elasticity | Chute edge protectors, quarry screening rubber strips |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on Door & Window Profiles.

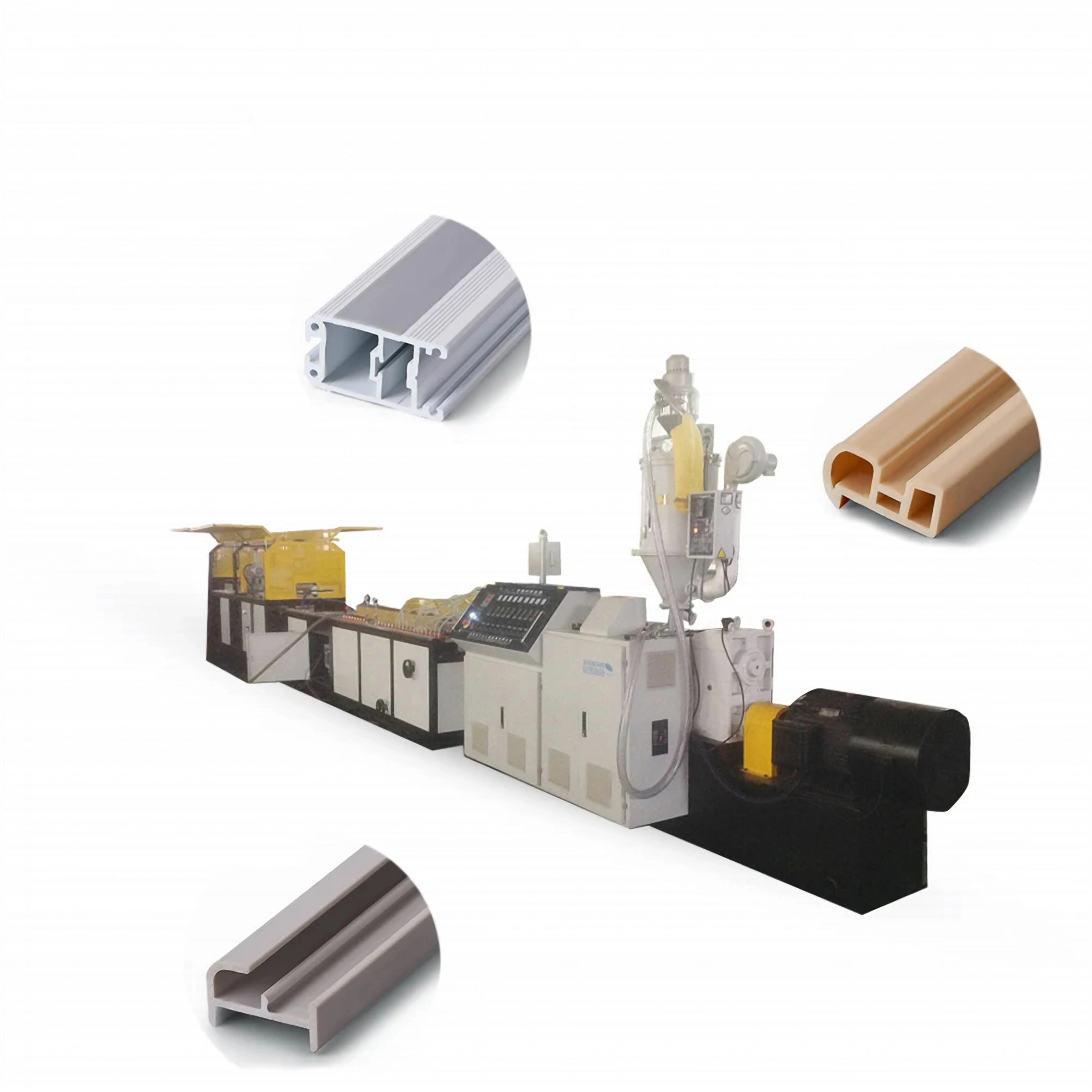

Production Batch Gallery
Actual production batch examples of Door & Window Profiles manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
