D-Shaped Profiles
Versatile D-shaped extruded rubber profiles featuring a flat mounting base and curved compressive sealing face. Widely utilized for enclosure doors, marine fenders, automotive tailgates, and structural hatch gaskets.
Types & Configurations of D-Shaped Profiles
Hollow D Compression Profiles
Internal circular void providing soft, compliant closure under minimal bolt or latch force.
Solid D Impact Bumpers
High-density solid rubber D-section absorbing heavy kinetic impact along truck loading docks.
Self-Adhesive D-Strip Gaskets
Flat base laminated with acrylic adhesive for rapid peel-and-stick enclosure assembly.
Flanged D-Sections with Lip
Side mounting lip with pre-punched holes for mechanical screw or rivet attachment.
Heavy Marine D Fenders
Large bore thick-walled D-sections for tugboats, barges, and marina docks.
Key Industrial Applications
Specifications & Technical Details
D-Shaped Profiles can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.
Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Base Widths | 8.0mm up to 250mm base width |
| Heights | 6.0mm up to 200mm height |
| Profile Geometry | Hollow center core or solid high-durometer elastomer |
| Durometer Hardness | Solid: 60A to 75A Shore A; Sponge: 0.50 to 0.70 g/cm³ |
| Compression Deflection | Up to 50% deflection with < 15% permanent compression set |
| Polymers | EPDM (UV resistant), Nitrile (oil resistant), Silicone, Neoprene |
| Operating Temp | -50°C to +130°C |

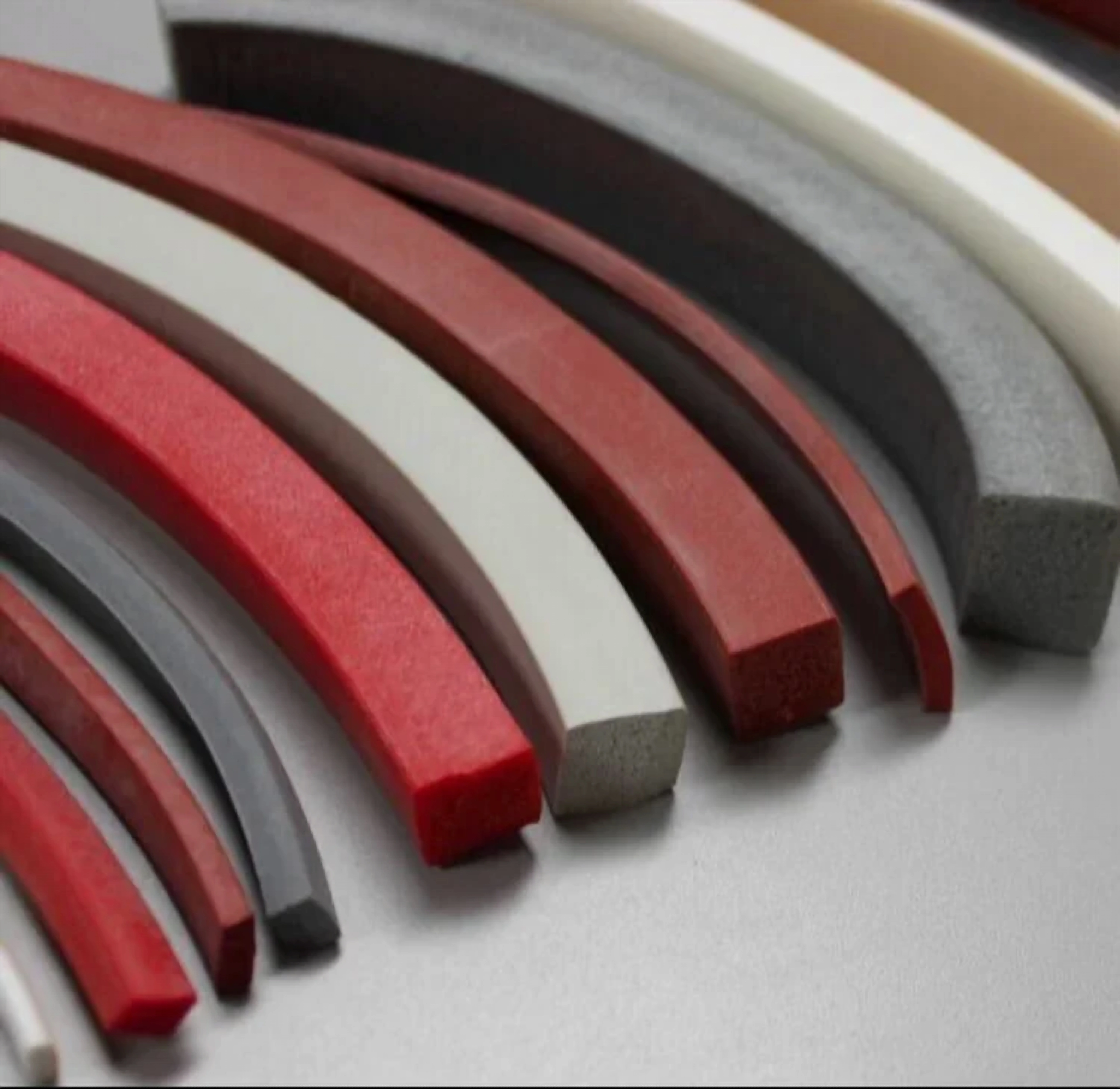

Material Selection & Properties
We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| EPDM Dense Rubber | Extreme weather, ozone & UV radiation resistance | Automotive door/window seals, building facade gaskets |
| EPDM Sponge / Foam | Low closure force, closed-cell water & dust sealing | Enclosure door perimeter gaskets, electrical cabinet seals |
| Nitrile (NBR) Extrusion | Resists mineral oils, hydraulic fluids & greases | Machinery inspection hatch seals, oil sump gaskets |
| Neoprene (CR) Rubber | Self-extinguishing, marine atmospheric stability | Ship portlights, railway carriage door profiles |
| Natural Rubber (NR) | High tear strength, abrasion resistance & elasticity | Chute edge protectors, quarry screening rubber strips |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on D-Shaped Profiles.

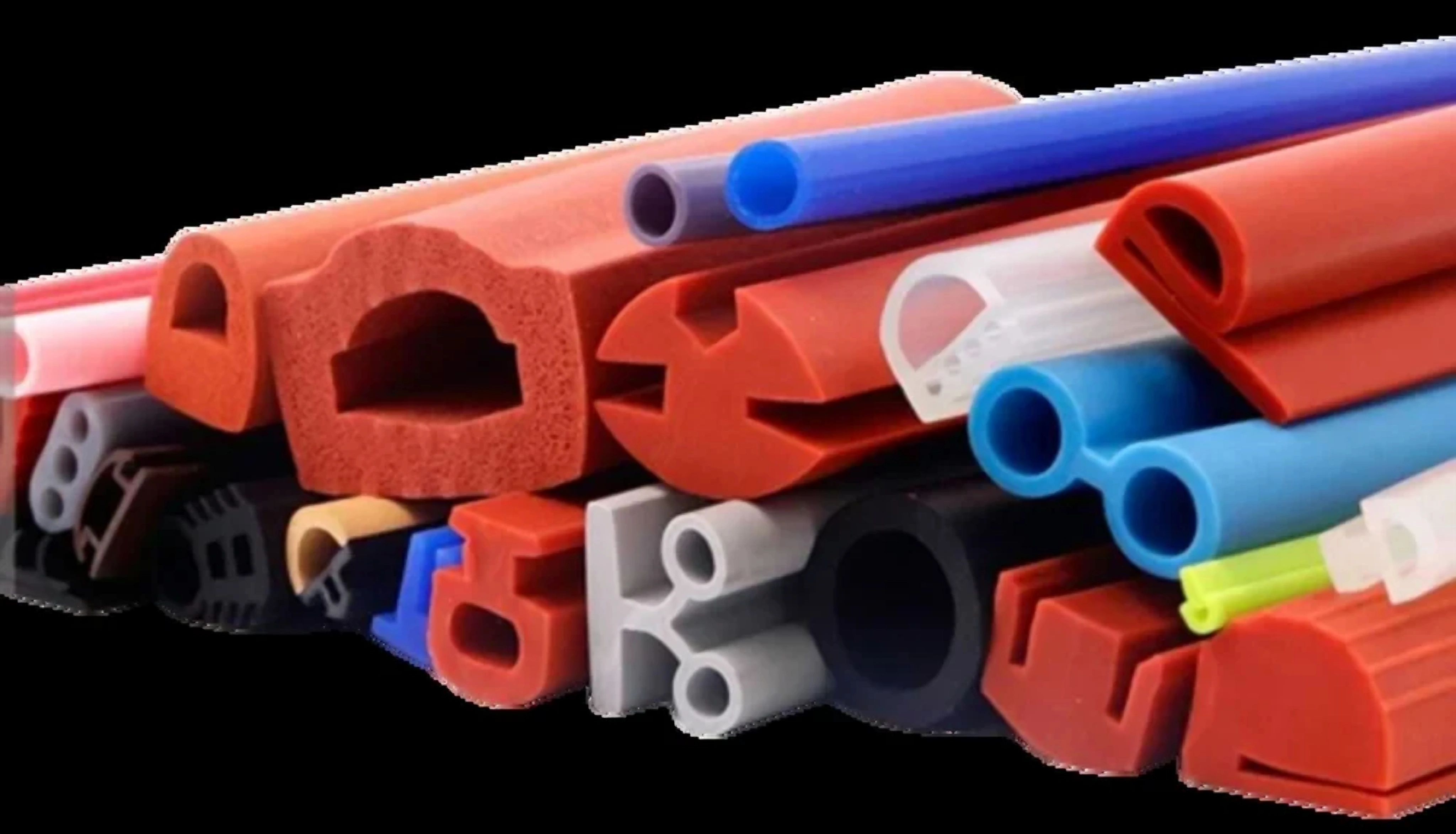

Production Batch Gallery
Actual production batch examples of D-Shaped Profiles manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
