Custom-Thickness Rubber Sheets
Specialized custom-gauge rubber sheeting manufactured to exact customer dimensional tolerances. Utilizing precision rotary splitting machines and micro-calenders to achieve tight non-standard thicknesses from 0.3mm ultra-thin foils up to 100mm heavy cast slabs.
Types & Configurations of Custom-Thickness Rubber Sheets
Ultra-Thin Diaphragm Sheeting (0.3mm - 0.8mm)
Precision calendered thin sheets for pressure regulators and sensing capsules.
Micro-Ground Precision Shims
Tolerance controlled to ±0.05mm for high-precision aerospace and metrology bedding.
Extra-Heavy Molded Slabs (35mm - 100mm)
Massive cured blocks for heavy forging hammer foundations and marine fenders.
Multi-Layer Composite Laminates
Dual-hardness or dual-material sheets (e.g. Viton face laminated to EPDM core).
Custom Roll Widths up to 2000mm
Extra-wide seamless sheeting for large diameter circular storage tank gaskets.
Key Industrial Applications
Specifications & Technical Details
Custom-Thickness Rubber Sheets can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.

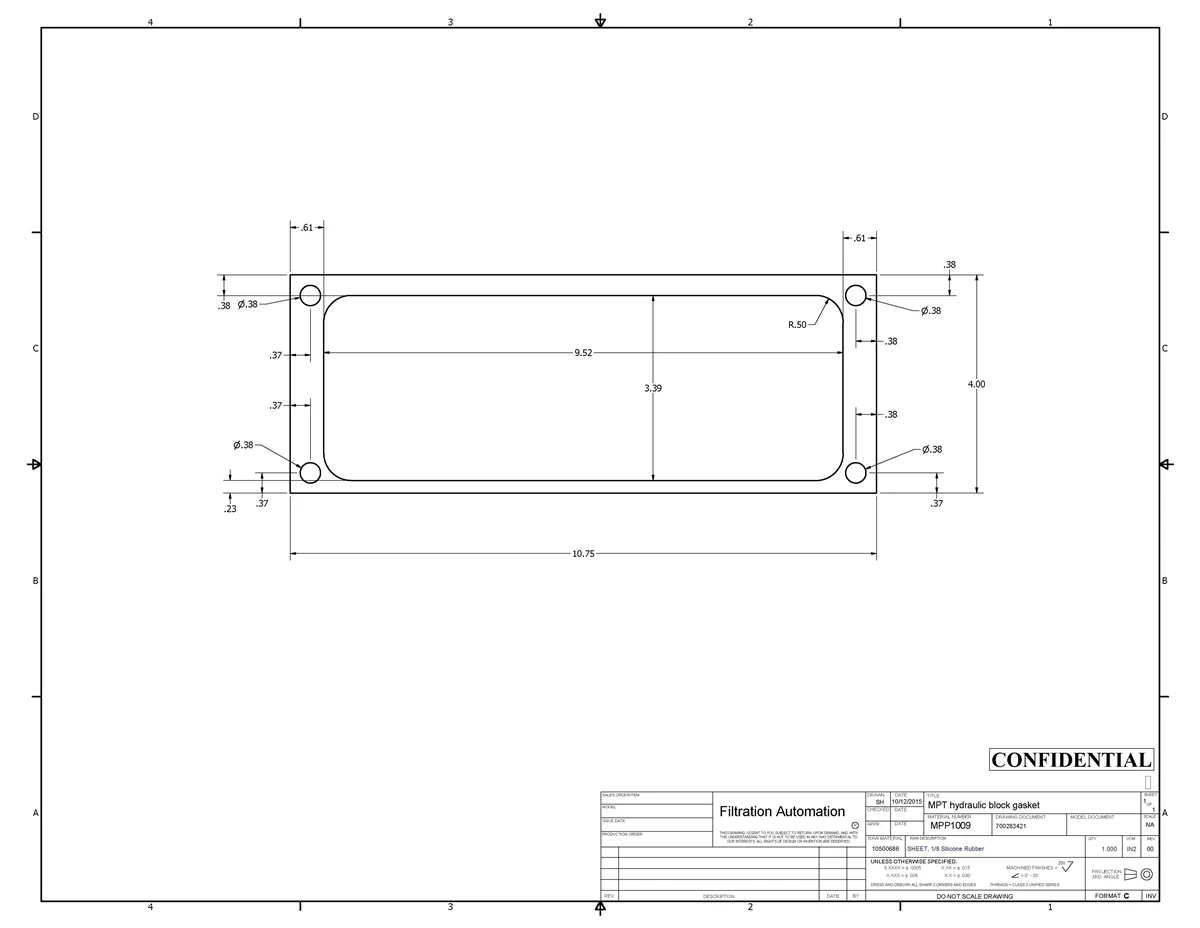

Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Thickness Spectrum | 0.3mm up to 100.0mm custom thickness |
| Thickness Tolerance | Down to ±0.05mm on precision ground grades |
| Polymers Available | NR, SBR, NBR, EPDM, Neoprene, Viton® FKM, Silicone, Butyl, Hypalon® |
| Reinforcement Options | Single/Multi-ply cotton, nylon, polyester, glass fiber, or wire mesh insertion |
| Surface Options | Matte, high-gloss polished, talc-dusted, cloth-finish, or self-adhesive |
| Testing Certifications | Supplied with 3.1 material test certificate and thickness inspection report |
| Operating Temp | -60°C to +250°C (compound dependent) |

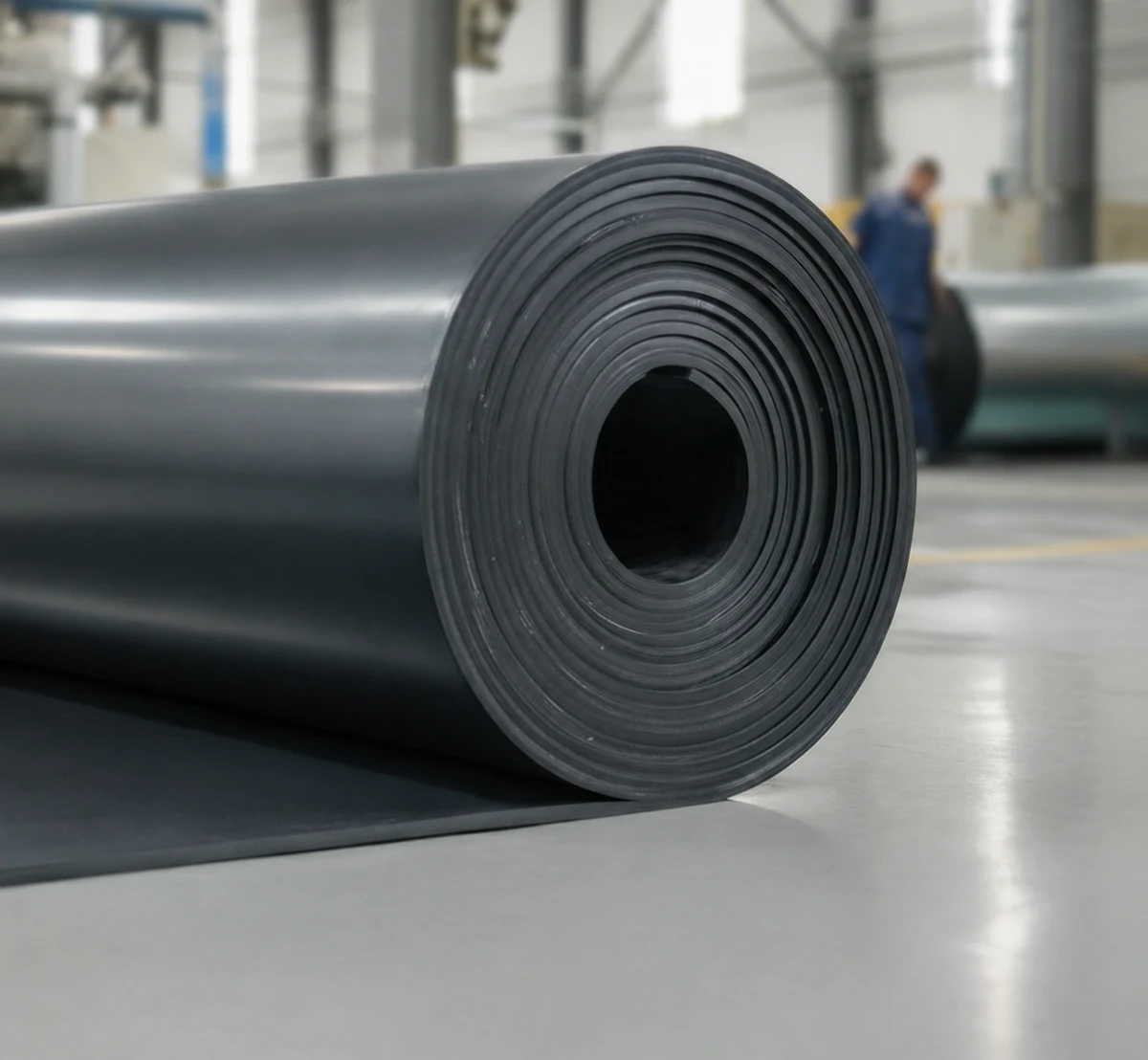

Material Selection & Properties
We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| Natural Rubber (NR) | High tensile strength (>15 MPa), abrasion resistance | Chute lining, shot-blast curtains, conveyor skirting |
| Nitrile (NBR) Sheet | Resistant to mineral oils, kerosene & hydraulic oils | Transformer gaskets, oil-resistant bench mats |
| Neoprene (CR) Sheet | Flame retardant, weather, sea-water & ozone resistant | Marine hatch seals, expansion joint packing |
| EPDM Rubber Sheet | Weather, UV, polar solvent & high temperature stability | Solar roofing membranes, chemical flange gaskets |
| FKM / Viton® Sheet | Withstands concentrated acids, fuels, solvents up to +220°C | Petrochemical flange seals, aerospace battery isolation |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on Custom-Thickness Rubber Sheets.

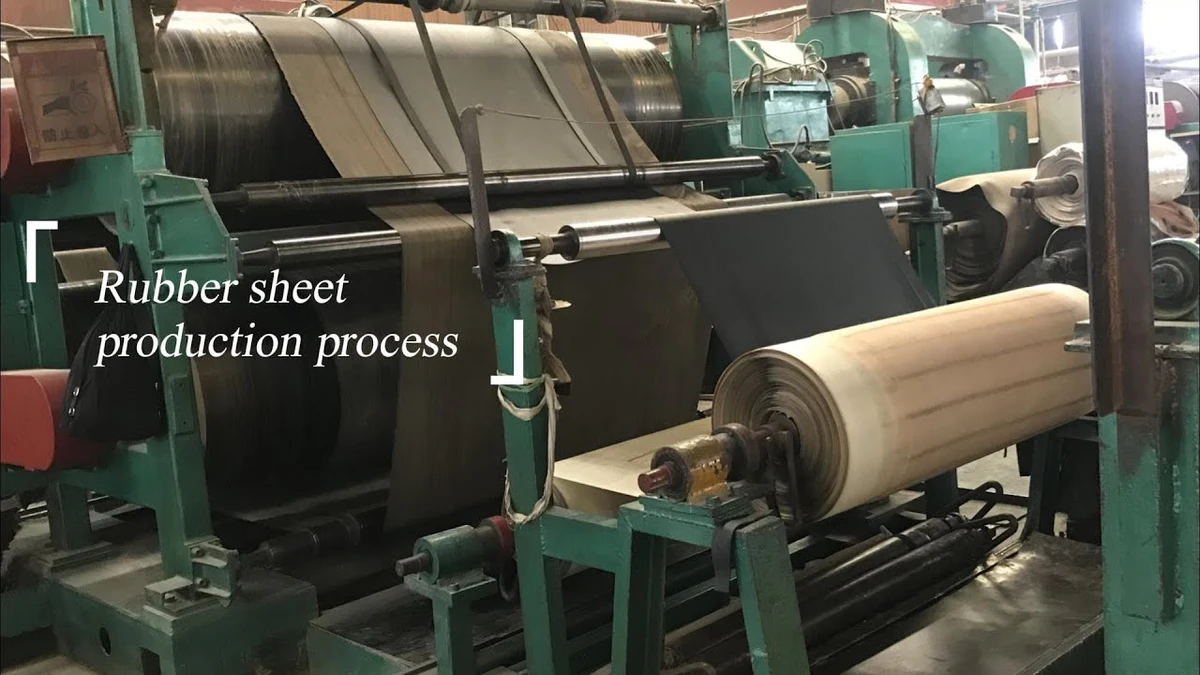

Production Batch Gallery
Actual production batch examples of Custom-Thickness Rubber Sheets manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
