Custom Moulded Rubber Components
Custom engineered moulded rubber components manufactured to client proprietary 2D/3D CAD specifications. Supported by in-house mold tooling, computerized rubber compounding, cryogenic flash removal, and full coordinate measuring machine (CMM) dimensional verification.
Types & Configurations of Custom Moulded Rubber Components
Complex 3D Elastomeric Bellows & Boots
Multi-convolution flexible boots protecting ball joints and steering racks from debris.
Multi-Port Pneumatic Valve Diaphragms
Precision fabric-reinforced molded diaphragms with integrated center sealing poppets.
Custom Rubber-Metal Composite Isolators
Elastomer chemically bonded to custom stamped and forged steel hardware.
Specialty Fluid Dispensing Nozzles & Valves
Elastomeric duckbill and umbrella check valves with micro-slit liquid opening pressure.
High-Durometer Structural Impact Blocks
Dense 85 Shore A molded blocks absorbing extreme shock in railway couplers.
Key Industrial Applications
Specifications & Technical Details
Custom Moulded Rubber Components can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.

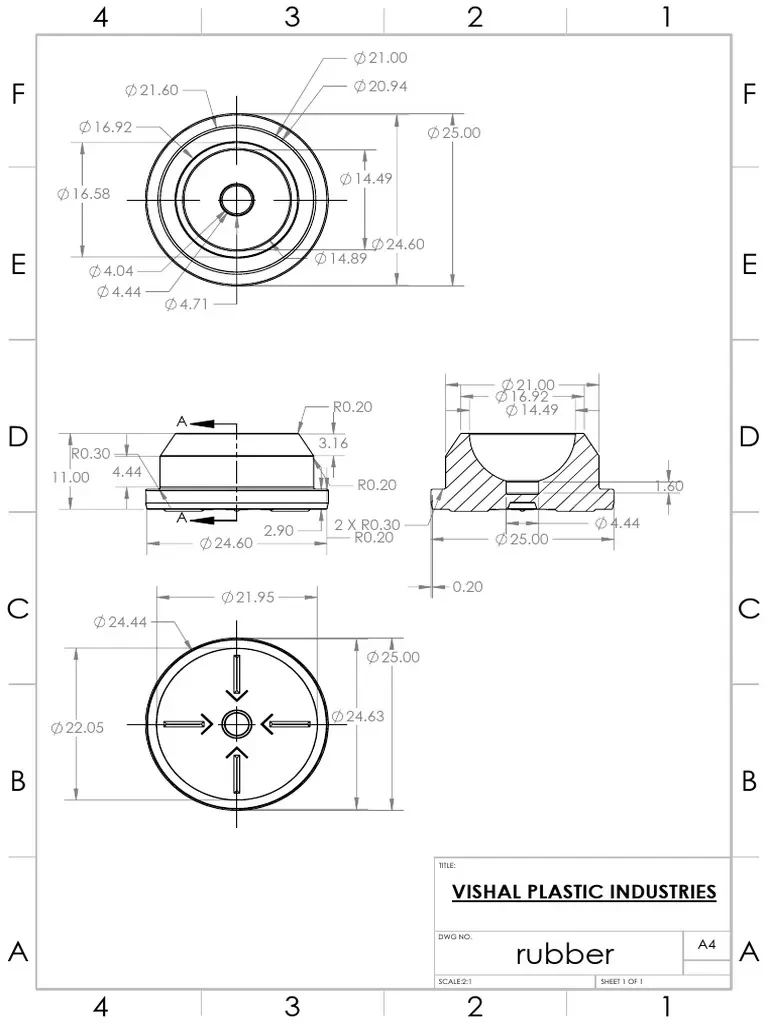

Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Molding Processes | Compression Molding, Transfer Molding, and High-Speed Liquid Injection (LSR/HCR) |
| Press Tonnage | 30 Ton to 500 Ton precision vacuum-assisted hydraulic presses |
| Tolerance Standard | DIN ISO 3302-1 Class M1 (precision) and Class M2 (standard) |
| Deflashing Method | Automated cryogenic liquid nitrogen tumbling producing zero-parting-line burrs |
| Quality Verification | Full dimensional inspection report, tensile/elongation test data, rheometer cure graphs |
| Polymer Range | NR, SBR, NBR, EPDM, Neoprene, Silicone, FKM (Viton®), HNBR, Butyl, Polyurethane |
| Operating Temp | -60°C to +250°C (compound dependent) |

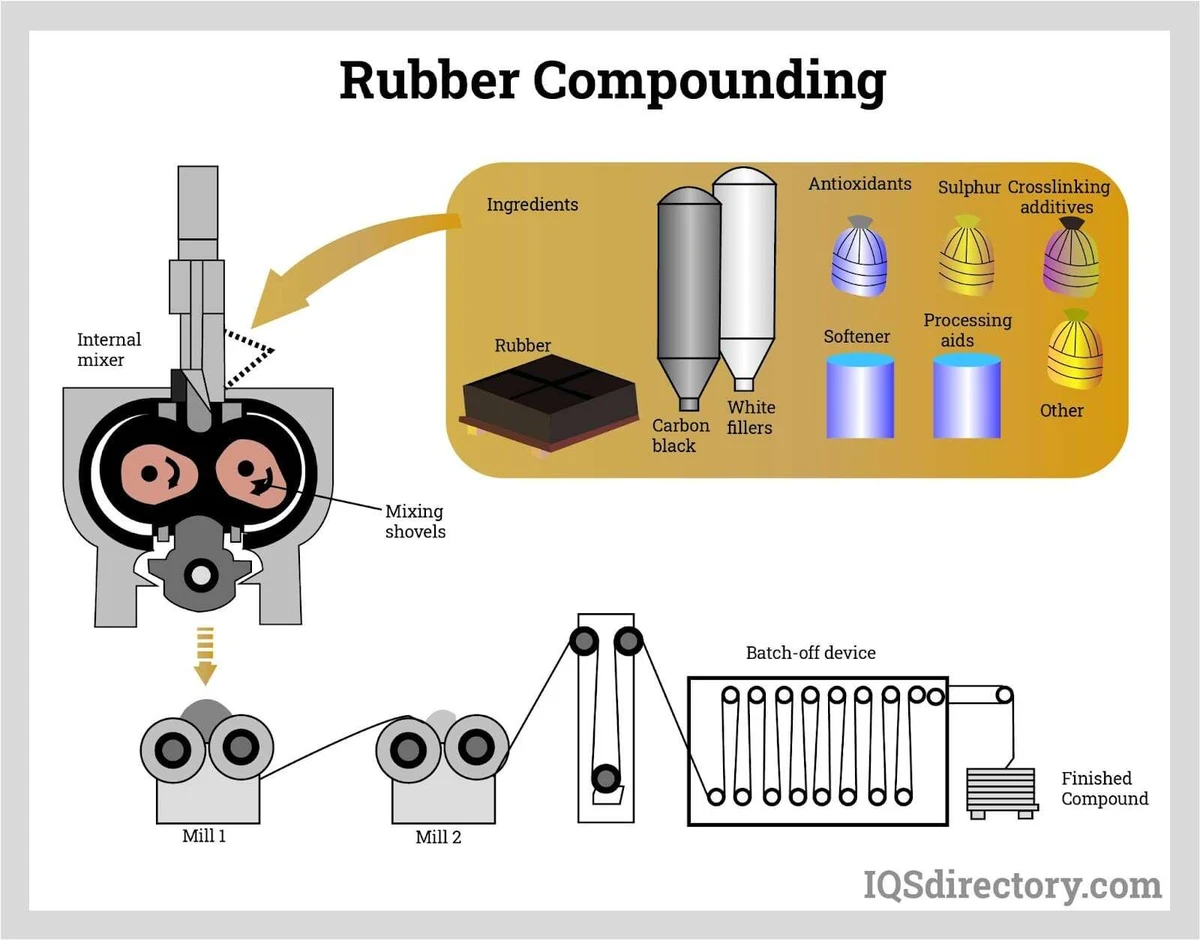

Material Selection & Properties
We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| Natural Rubber (NR) | High tensile strength & dynamic resilience | General industrial mounts, automotive bushings |
| Nitrile (NBR) | Superior petroleum oil, fuel & grease resistance | Hydraulic cylinder seals, oil gaskets, fuel lines |
| EPDM | Outstanding weather, ozone, UV & steam stability | Outdoor enclosures, HVAC seals, automotive weatherstrips |
| Neoprene (CR) | Moderate oil resistance, flame retardant, ozone stable | Marine gaskets, vibration pads, railway seals |
| Silicone (VMQ) | Extreme thermal range (-60°C to +250°C), food grade | Food processing, pharmaceutical, high-heat gaskets |
| Viton® (FKM) | High chemical, acid & high temp resistance up to 220°C | Aerospace fuel seals, chemical processing pumps |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on Custom Moulded Rubber Components.

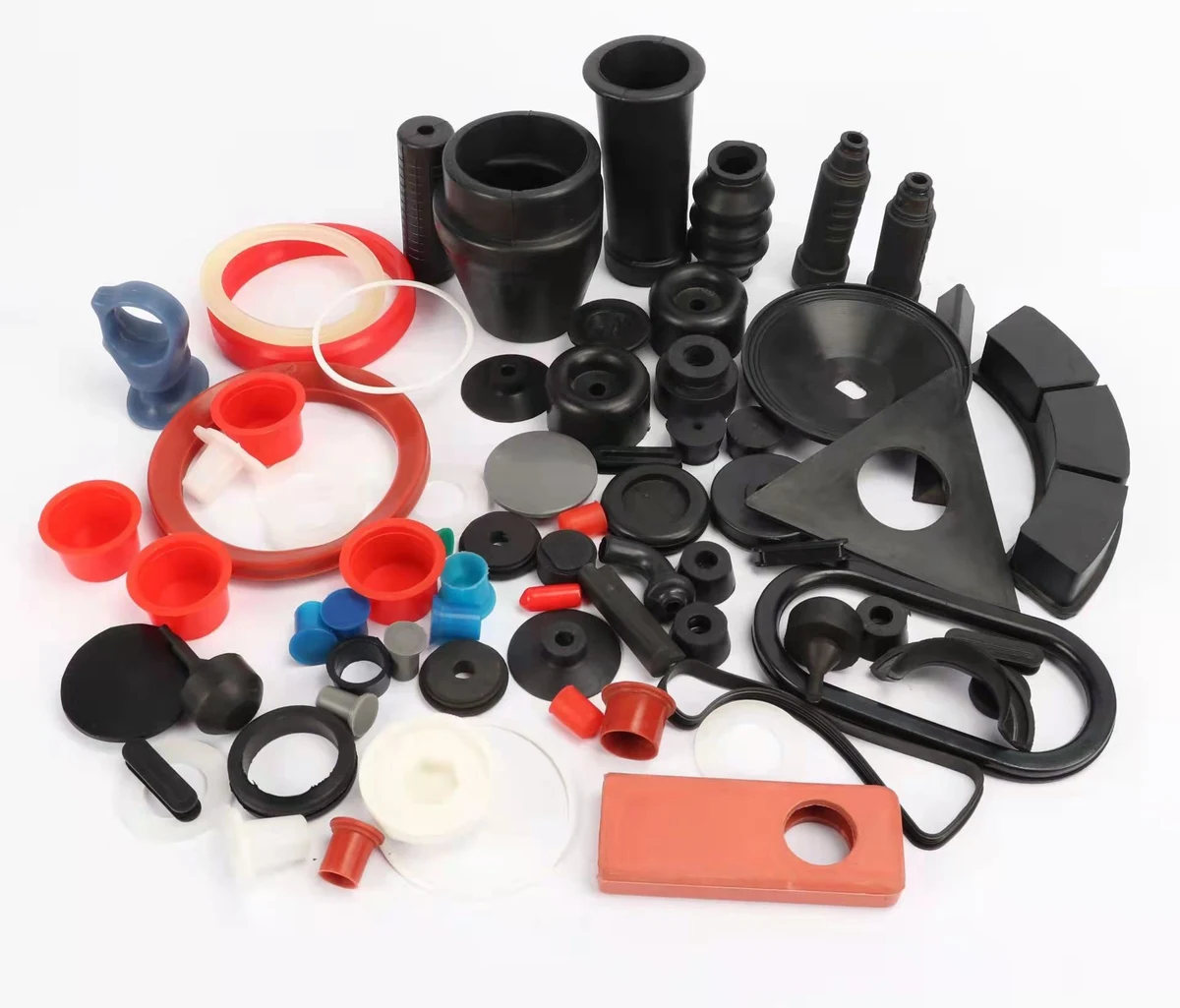

Production Batch Gallery
Actual production batch examples of Custom Moulded Rubber Components manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
