Custom-Machined PTFE Components
High-performance Custom-Machined PTFE Components manufactured to precision DIN/ISO tolerances. Engineered for extreme operating environments, delivering outstanding reliability, durability, and chemical resistance across heavy industrial applications.
Types & Configurations of Custom-Machined PTFE Components
Standard Custom-Machined PTFE Components
Catalogue dimensions engineered for rapid OEM integration and standard assembly interfaces.
Heavy-Duty Reinforced Custom-Machined PTFE Components
Reinforced cross-sections engineered for high mechanical loads, pressure spikes, and severe duty cycles.
Chemical & High-Temp Custom-Machined PTFE Components
Formulated with specialized polymers resisting chemical attack, fuels, and thermal extremes.
Bespoke Drawing-Based Custom-Machined PTFE Components
Custom designed and manufactured to your exact engineering CAD blueprints or physical sample benchmarks.
Key Industrial Applications
Specifications & Technical Details

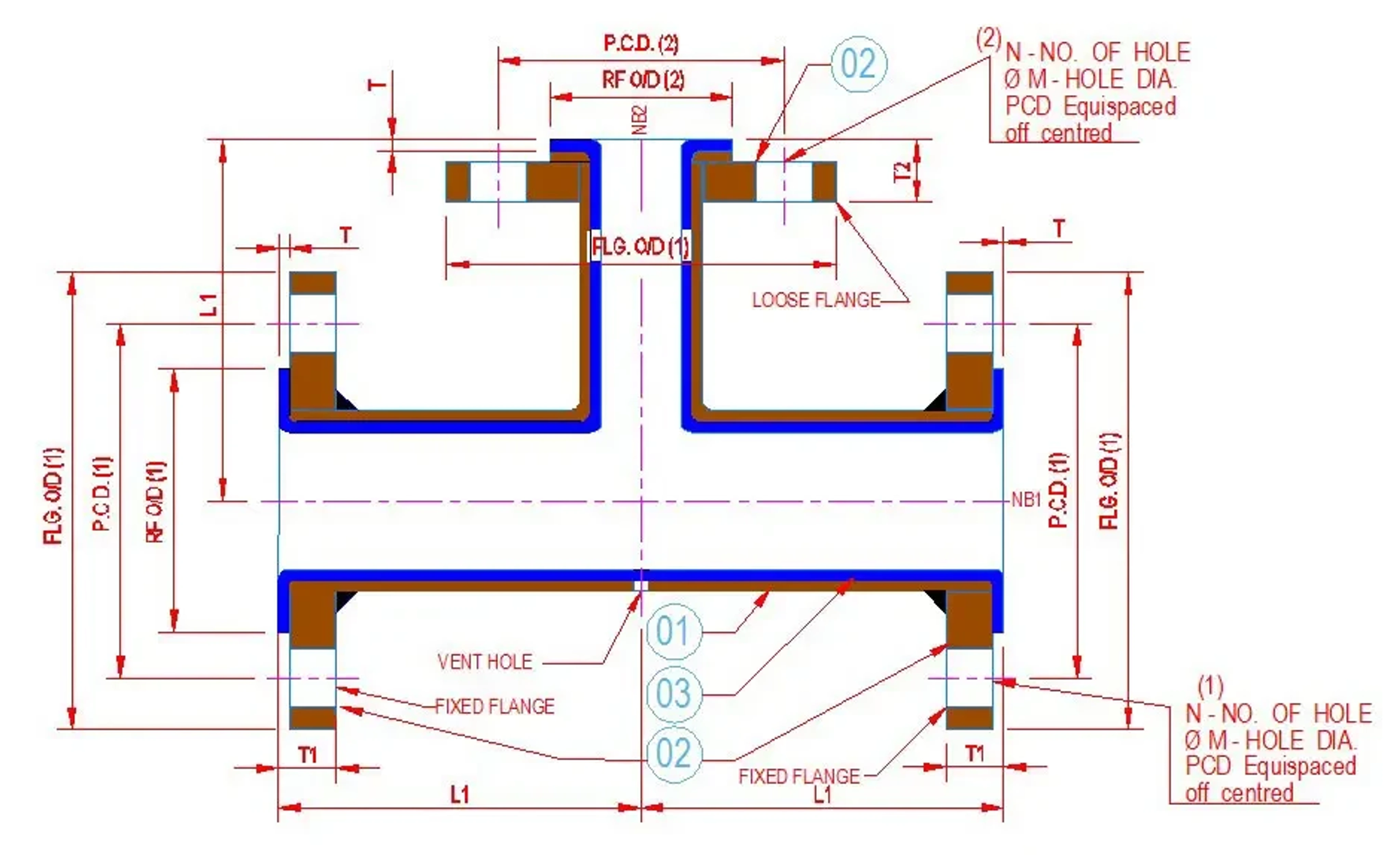

Custom-Machined PTFE Components can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.
Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Manufacturing Standard | DIN ISO 3302-1 Class M1/M2 / ISO 2768-m |
| Material Composition | High-grade elastomer / polymer formulation tailored to service media |
| Hardness / Durometer | 40 Shore A up to 95 Shore A / 85 Shore D (application dependent) |
| Operating Temperature | -60°C to +260°C (compound dependent) |
| Tensile Strength | > 12 MPa to > 100 MPa |
| Dimensional Tolerances | Precision ground / molded to ±0.05 mm to ±0.2 mm |
| Certifications | ISO 9001:2015, RoHS, REACH, ASTM Test Certified |
| Production Capability | Prototype batches to high-volume multi-cavity OEM mass production |
Material Selection & Properties

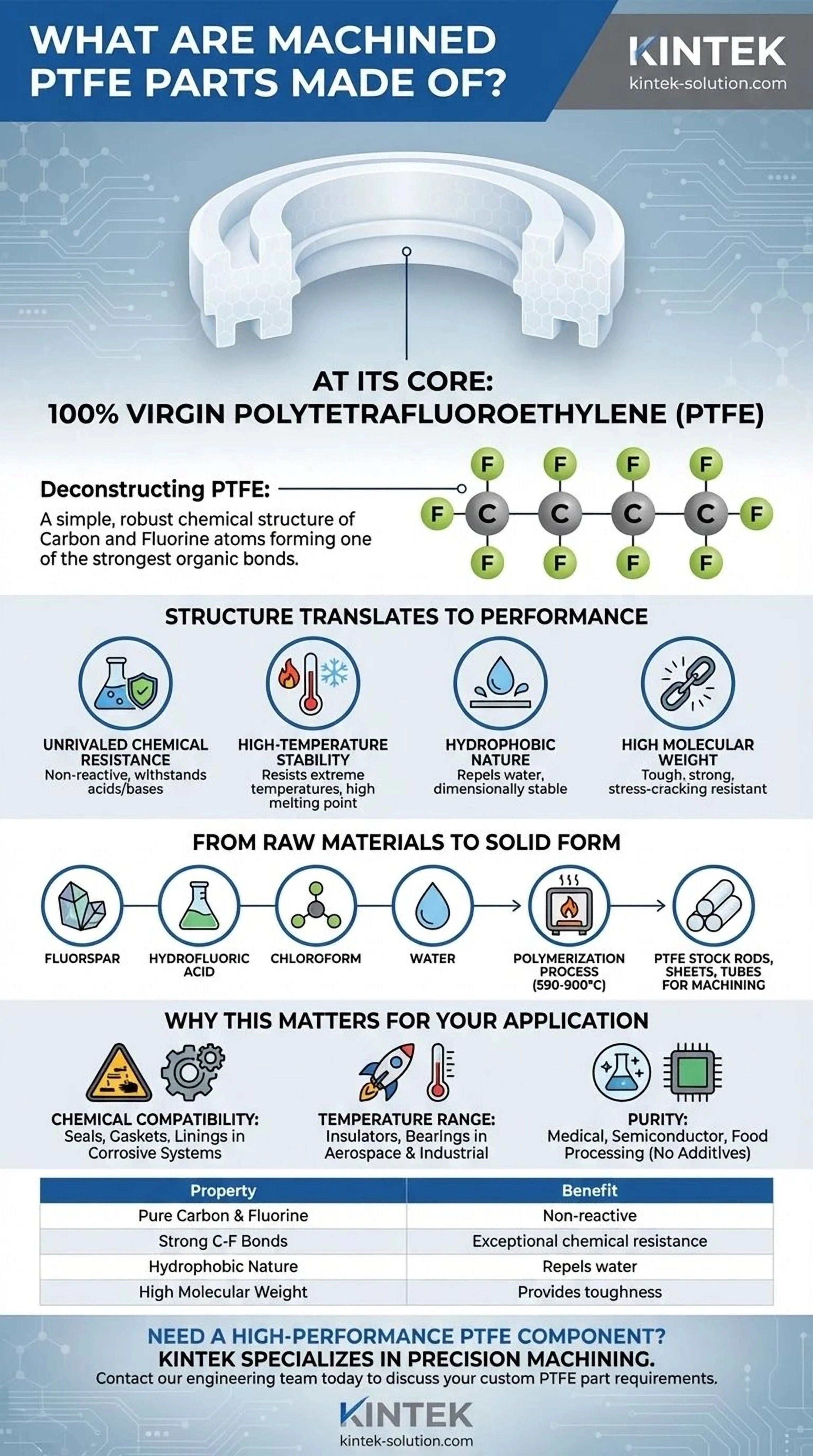

We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| Virgin PTFE (Teflon™) | Universal chemical inertness (pH 0-14), temp up to +260°C | Pharmaceutical seals, cryogenic valve seats, gaskets |
| 15% / 25% Glass-Filled PTFE | Reduced creep/cold flow under compressive mechanical load | Hydraulic backup rings, cylinder piston wear bands |
| Carbon / Graphite Filled PTFE | Low friction, high thermal conductivity, dry running | Compressor rider rings, dynamic rotary shaft lip seals |
| Bronze-Filled PTFE (40% / 60%) | Maximum compressive strength & thermal dissipation | Heavy hydraulic guide rings, high-pressure piston cups |
| Modified / TFM PTFE | Lower permeation, smoother surface finish, higher fatigue | Semiconductor ultra-pure valves, diaphragm pumps |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on Custom-Machined PTFE Components.
Production Batch Gallery

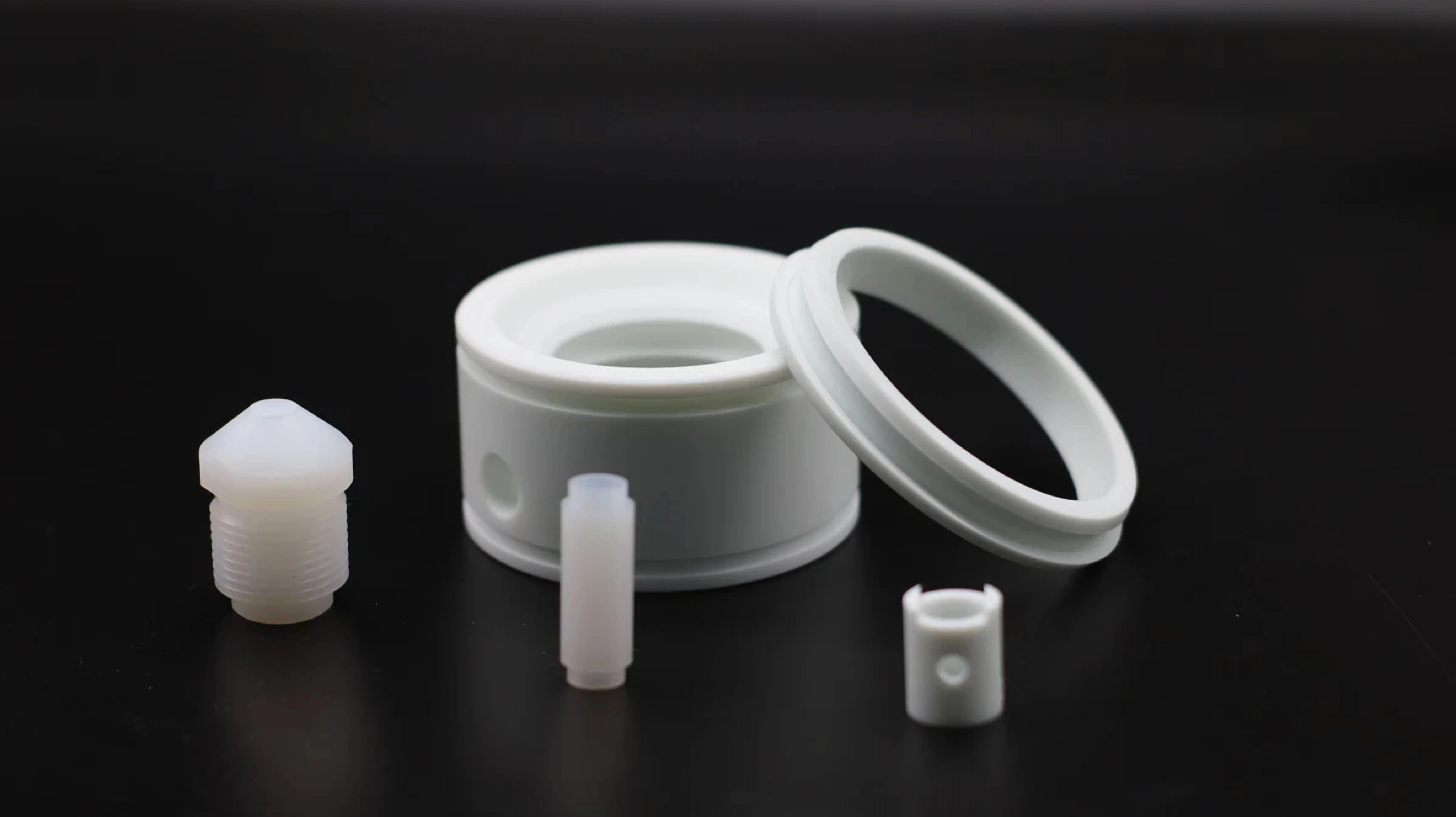

Actual production batch examples of Custom-Machined PTFE Components manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
