Coloured Silicone Sheets
Precision colored solid and sponge silicone rubber sheeting manufactured with high-stability inorganic pigments. Designed for visual line identification, architectural aesthetic gaskets, consumer hardware, and corporate branding applications.
Types & Configurations of Coloured Silicone Sheets
High-Visibility Yellow & Orange Sheets
Safety color coded sheets for hazardous machinery pinch point gaskets and edge trims.
Medical Blue & Green Sheeting
Calming surgical color sheets for hospital cart bumpers and medical device enclosures.
Deep Black Anti-Static Silicone Sheets
Carbon-loaded black silicone sheets for electronics manufacturing static dissipation.
Architectural White & Gray Gasket Rolls
Color-matched weather-tight perimeter sheets for modern building curtain walls.
Custom Brand-Matched Silicone Sheeting
Custom formulated silicone matching client corporate brand identity for retail hardware.
Key Industrial Applications
Specifications & Technical Details
Coloured Silicone Sheets can be precision-manufactured in custom dimensions, wall thicknesses, cross-sections, and durometers to match your exact application specifications. Below are typical engineering cross-section drawings and technical parameters for reference.

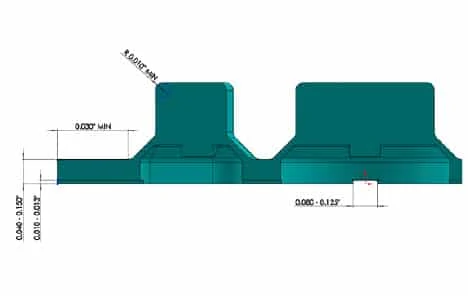

Typical Dimension Drawings & Blueprint Cross-Sections
Technical Specifications
| Parameter | Specification / Options |
|---|---|
| Color Palette | Any standard RAL, Pantone, or customer submitted benchmark color plaque |
| Lightfastness | Grade 7-8 Blue Wool Scale (resists solar fading and discoloration for 15+ years) |
| Pigment Formulation | Heavy-metal free, RoHS compliant, food-contact safe inorganic pigments |
| Hardness Range | 30A to 80A Shore A |
| Thickness Range | 0.5mm to 20.0mm |
| Roll Widths | 1000mm and 1200mm continuous widths |
| Operating Temp | -60°C to +200°C |
Material Selection & Properties
We offer specialized compound formulations tailored to chemical media, thermal extremes, static deflection, and dynamic fatigue requirements. The best material depends on your operating environment and required service life.
| Material / Polymer | Key Engineering Properties | Recommended Applications & Considerations |
|---|---|---|
| General Purpose Silicone | Thermal stability from -60°C to +200°C, dielectric | Electrical insulation, high-temp oven door seals |
| Platinum-Cured Silicone | Ultra-pure, non-yellowing, zero peroxide byproducts | Medical fluid transfer, pharmaceutical filling lines |
| High-Temperature Grade | Continuous operation up to +250°C, intermittent +300°C | Automotive turbocharger hoses, furnace baffles |
| Flame Retardant (UL94 V-0) | Low smoke toxicity, self-extinguishing flame resistance | Rail transit interior seals, EV battery pack insulation |
| Conductive / Antistatic Silicone | Volume resistivity 10² to 10⁴ Ω·cm for ESD shielding | Avionics EMI/RFI shielding, semiconductor handling |
Important Engineering Guidance
The above properties are general characteristics. Final material selection depends on your specific application, operating conditions, load requirements, media compatibility, and service temperature. Please contact our polymer engineering team for tailored compounding guidance on Coloured Silicone Sheets.

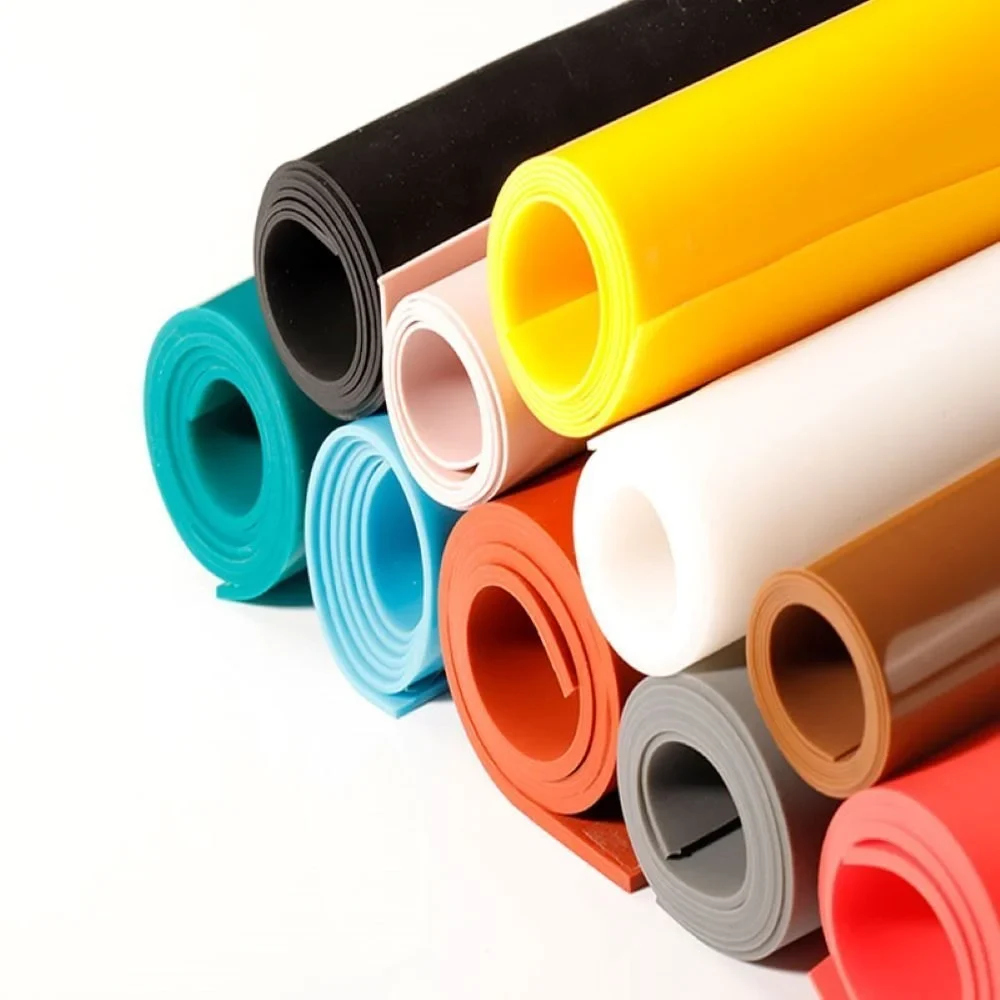

Production Batch Gallery
Actual production batch examples of Coloured Silicone Sheets manufactured for OEM, automotive, railway, and heavy engineering clients. We manufacture standard catalogue sizes as well as bespoke custom geometries from your CAD models or physical samples.
Request an Engineering Quote
Share your required dimensions, polymer grade, or 2D/3D drawings for immediate engineering review and quote.
